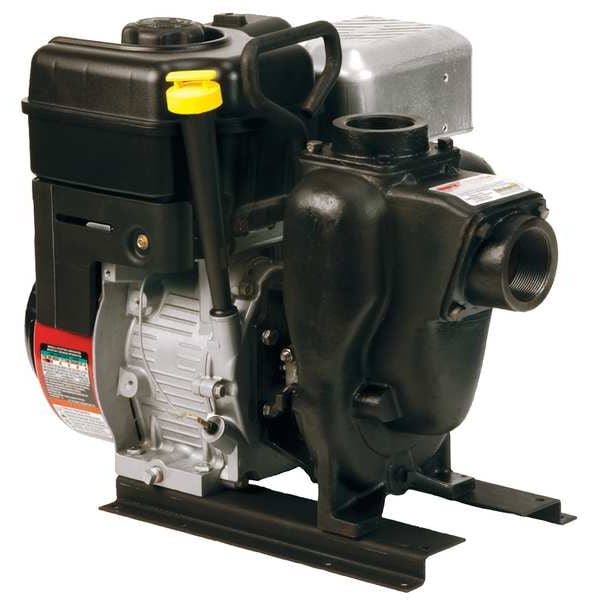

Pump, Engine Driven, 6-1/2 HP, Cast Iron

Mfr # 200PI6PRO
Zoro # G2215394

1,047.99

Free Shipping & Returns

Key Features

Height

15"

Casing Adapter

Cast Iron

GPM of Water @ 80 Ft. of Head

Number of Impellers

Impeller Type

Open

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 200PI6PRO
Zoro #: G2215394
UPC #: 791206043297
Country of Origin: China

Dimensions

Height: 15"
Width: 14-1/2"
Length: 20 1/2 in
Engine Size: 208 cc
Overall Length: 20 1/2 in
Overall Height: 15 in
Overall Width: 14 1/2 in
Discharge Dia.: 2 in
Inlet Dia.: 2 in
Inlet Diameter: 2 in
Solids Diameter - Maximum: 0 in
Manufacturers Warranty Length: 1 yr
Discharge Diameter: 2 in
Wire Rope Length: 20 1/2 in

Details

Casing Adapter: Cast Iron
GPM of Water @ 80 Ft. of Head: 45
Item: Engine Driven Pump
Number of Impellers: 1
Impeller Type: Open
Outlet: 2" NPT
Inlet: 2 in FNPT
Seal Material: Viton
Mechanical Seal: Carbon, Ceramic
Agency Compliance: EPA
Sensor Type: None
Check Valve: EPDM
Tank Capacity: 1 gal
Application: Agricultural
GPM of Water @ 60 Ft. of Head: 80
Max. Suction Lift: 12 ft
GPM of Water @ 30 Ft. of Head: 135
GPM of Water @ 10 Ft. of Head: 165
Engine/Motor Type: Gas
GPM of Water @ 70 Ft. of Head: 47
Temp. Range: 32 Degrees to 150 Degrees F
Impeller Material: Cast Iron
GPM of Water @ 20 Ft. of Head: 150
GPM of Water @ 50 Ft. of Head: 90
Max. Head: 100 ft
Self-Priming: Yes
Engine RPM: 3600
Volute/Wear Plate: Cast Iron
Engine Brand: Briggs & Stratton
GPM of Water @ 40 Ft. of Head: 120
GPM of Water @ 100 Ft. of Head: 18
GPM of Water @ 90 Ft. of Head: 35
Roll Bar Frame: None
Max. Pressure: 40 psi
Ignition Type: Solid State
HP: 6 1/2 hp
Material of Construction: Cast Iron
Flow Rate @ 80 Ft. of Head: 45 gpm
Maximum Discharge Pressure: 40 psi
Power Source: Gas Engine
Discharge Standard: NPT
Discharge Gender: Female
Inlet Gender: Female
Impeller Design: Open
Pump Mechanism: Centrifugal
RPM: 3,600 RPM
Flow Rate @ 10 Ft. of Head: 165 gpm
Body Material: Cast Iron
Maximum Self-Priming Lift: 12 ft
Flow Rate @ 40 Ft. of Head: 120 gpm
Inlet Standard: NPT
Max. Liquid Temp.: 300 Degrees F
Discharge: 2 in FNPT
Flow Rate @ 20 Ft. of Head: 150 gpm
Flow Rate @ 60 Ft. of Head: 80 gpm
Frame Material: Cast Iron
Volute Material: Cast Iron
Frame Design - Pumps: Frame Rails with Top Handle
Includes: None
Standards: EPA
Engine Series: 122032-0137B8
Frame Design: Frame Rails with Top Handle
Self-Priming Lift - Maximum: 12 ft
Flow Rate @ 20 ft of Head: 150 gpm
Rotation Speed - Maximum: 3,600 RPM
Series: 200 series Cast
Liquid Temperature - Maximum: 300 Degrees F
Feet of Head - Maximum: 100 ft
For Media Type: Clear Water
Flow Rate @ 10 ft of Head: 165 gpm
Horsepower: 6 1/2 hp
Suction Lift - Maximum: 12 ft
Discharge Pressure - Maximum: 40 psi
Power Source - TS Only: Gas Engine
Power Source - old: Gas Engine

Description

Engine Driven Pump, Engine Size 208 cc, HP 6 1/2 hp, Tank Capacity 1 gal, Ignition Type Solid State, Pump Mechanism Centrifugal, Body Material Cast Iron, Volute Material Cast Iron, Seal Material Viton, Frame Material Cast Iron, Flow Rate @ 10 Ft. of Head 165 gpm, Flow Rate @ 20 Ft. of Head 150 gpm, Flow Rate @ 40 Ft. of Head 120 gpm, Flow Rate @ 60 Ft. of Head 80 gpm, Flow Rate @ 80 Ft. of Head 45 gpm, Max. Head 100 ft, Max. Suction Lift 12 ft, Maximum Self-Priming Lift 12 ft
