  9. HVAC Circulating Pump, 1/6 hp, 115V, 1 Phase, Flange Connection

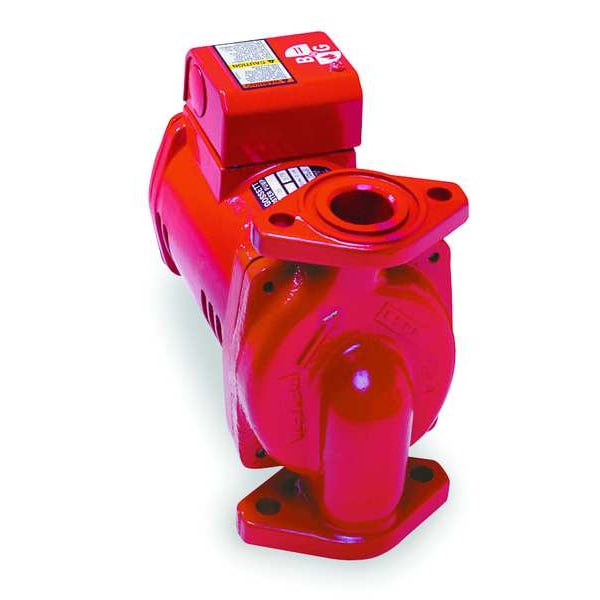

Bell & Gossett HVAC Circulating Pump, 1/6 hp, 115V, 1 Phase, Flange Connection 1BL016 - main

HVAC Circulating Pump, 1/6 hp, 115V, 1 Phase, Flange Connection

  • Mfr # 1BL016

  • Zoro # G1116367

product price: $836.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Phase
Single
Horsepower
1/6 hp
Series
PL-50
Inlet/Outlet Size
1 in to 1-1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1BL016
Zoro #
G1116367
UPC #
683328216263
Country of Origin
United States

Dimensions

Inlet/Outlet Size
1 in to 1-1/2 in
Face to Face Dimension
8 1/2 in
Overall Height
8.5 in
Overall Width
4.5 in
Overall Length
9.13 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
1 in, 1 1/4 in, 1 1/2 in
Compatible Discharge Pipe Size
1 in, 1 1/4 in, 1 1/2 in
For Discharge Pipe Diameter
1 in, 1 1/4 in, 1 1/2 in
For Inlet Pipe Diameter
1 in, 1 1/4 in, 1 1/2 in

Details

Item
Hydronic Circulating Pump
Voltage
115V AC
Phase
Single
Horsepower
1/6 hp
Series
PL-50
Pump Type
Standard
Number of Speeds
1
Max. GPM @ Head
58 gpm @ 1 ft
Maximum Feet of Head
17 ft
Min. GPM @ Head
20 gpm @ 15 ft
Connection Type
Flange
Amps
1.8 A
Impeller Material
Plastic
Shaft Material
Carbon/Silicon Carbide
Shut-Off
17 ft
Mechanical Seal
Maintenance Free
Includes
Auto Thermal Protection
Pump Mount
Nonmetallic
Best Efficiency GPM @ Head
35 gpm @ 12 ft
Drive Type
Direct
Loop Configuration
Closed
Thermal Protection
Auto
Standards
UL Listed
Maximum Flow Rate @ 10 Feet of Head
40 gpm
Maximum Flow Rate @ 5 Feet of Head
50 gpm
Rotor Type
Dry
Maximum Flow Rate @ 15 Feet of Head
20 gpm
Nameplate Voltage
115V AC
Motor Enclosure Design
Open Drip Proof
Pump Housing Material
Cast Iron
Maximum Flow Rate @ 50 Feet of Head
[DELETE]
Maximum Media Temperature
225 Degrees F
Flange or Union Included
No
For Use With Potable Systems
Yes
Maximum RPM
3,300 RPM
Maximum Flow Rate @ 1 Feet of Head
58 gpm
Maximum Operating Pressure
150 psi
Series Family
PL
Frequency
60 Hz
Full Load Current
1.8 A
Media Temperature - Minimum
14 Degrees F
For Low Lead Compliance Level
EX
Pump Casing Material
Cast Iron
Media Temperature - Maximum
225 Degrees F
Feet of Head - Maximum
17 ft
Connection Standard
Flange
Includes Flange
No Flange Included
Flow Rate - Maximum
57 gpm
Operating Pressure - Maximum
150 psi
Includes Volute
Volute Included
Revolutions Per Minute - Maximum
3,300 RPM

Description

Hydronic Circulating Pump, Compatible Intake Pipe Size 1 in, 1 1/4 in, 1 1/2 in, Connection Type Flange, Face to Face Dimension 8 1/2 in, Flange or Union Included No, For Use With Potable Systems Yes, Horsepower 1/6 hp, Maximum Feet of Head 17 ft, Maximum Flow Rate @ 10 Feet of Head 40 gpm, Maximum Flow Rate @ 15 Feet of Head 20 gpm, Maximum Flow Rate @ 1 Foot of Head 58 gpm, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single, Pump Type Standard, Series Family PL

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
