Shop BESSEY

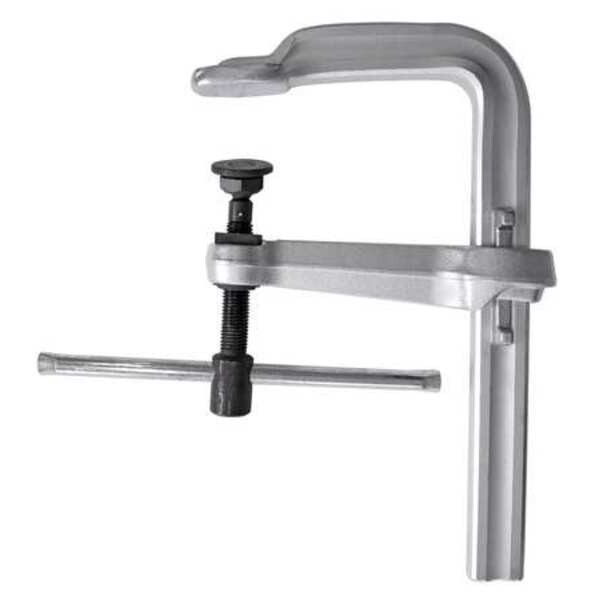

18 in Bar Clamp, Tempered Drop-Forged Steel Handle and 8 in Throat Depth

  • Mfr # 7200S-18

  • Zoro # G4409903

product price:
$
811.99
/ea
Free Shipping & Returns

Key Features

Type
Extra Heavy Duty, 7200S Series
Handle Material
Tempered Drop-Forged Steel
Throat Depth (In.)
8 in
Includes
Standard Rail Profile, Specially Designed MorPad
Clamping Surface W (In.)
3 5/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7200S-18
Zoro #
G4409903
UPC #
788502008242
Country of Origin
Germany

Dimensions

Throat Depth (In.)
8 in
Bar Thickness (In.)
1 in
Nominal Rail Size (In.)
2 x 1
Screw Size (In.)
0.925
Spindle Dia. (In.)
0.925
Handle Length (In.)
13 1/2 in
Bar Size (In.)
1 3/4 in
Bar Width (In.)
2 in
Throat Depth
8 in
Throat Depth1
8 in
Bar Width
2 in
Bar Thickness
1 in
Jaw Pad Width
2 in
Handle Length
13 1/2 in
Spindle Diameter1
15/16 in

Details

Item
Bar Clamp
Type
Extra Heavy Duty, 7200S Series
Handle Material
Tempered Drop-Forged Steel
Max. Jaw Opening (In.)
18 in
Includes
Standard Rail Profile, Specially Designed MorPad
Clamping Surface W (In.)
3 5/16 in
Swivel Type
35 Degrees Tilt, Replaceable
Clamping Surface D (In.)
2 in
Pad Type
Swivel Morpad
Load Capacity (Lb.)
7,770 lb
Bar Material
Steel
Application
Industrial
Swivel Pad (In.)
2
Opening (In.)
18 in
Clamp Face (In.)
2 x 3-5/16
Nominal Clamping Pressure
7,770
Function
Clamp
Clamping Force1
7,770 lb
Clamping Capacity1
18 in
Spindle Finish1
Spatter-Resistant
Handle Style
Sliding T
Bar Type
Patented Rail
Spindle Material1
High Carbon
Jaw Pad Type
Swivel
Sliding Mechanism
Bar Slide
Clamping Force
7,770 lb

Description

The BESSEY - 7200S-18 is a bar clamp designed primarily for industrial use. Made from steel, it supports assembly, woodworking, gluing, and metalworking applications. The clamp is constructed with a long, rigid bar that includes a fixed head on one end and an adjustable, sliding head on the other. Its structure allows evenly distributed pressure across workpieces, aiding in tasks like gluing, fastening, or machining. This clamp is a vital tool for applications and industries where parts require firm holding in place.

Key Features of the BESSEY - 7200S-18 Bar Clamp:

  • Bar Material: Steel
  • Bar Size: Width: 1.75 in; Thickness: 1 in
  • Clamping Capacity: 18 inches; Clamping Force: Up to 7,770 lb
  • Handle Material: Tempered Drop-Forged Steel; Handle Length: 13.5 inches
  • Jaw Pad: Swivel jaw pad
  • Load Capacity: Up to 7,770 lb
  • Additional Features: Standard Rail Profile; MorPad
  • Swivel Feature: 35 degrees
