  11. 6 in Bar Clamp, Composite Plastic Handle and 2 1/2 in Throat Depth

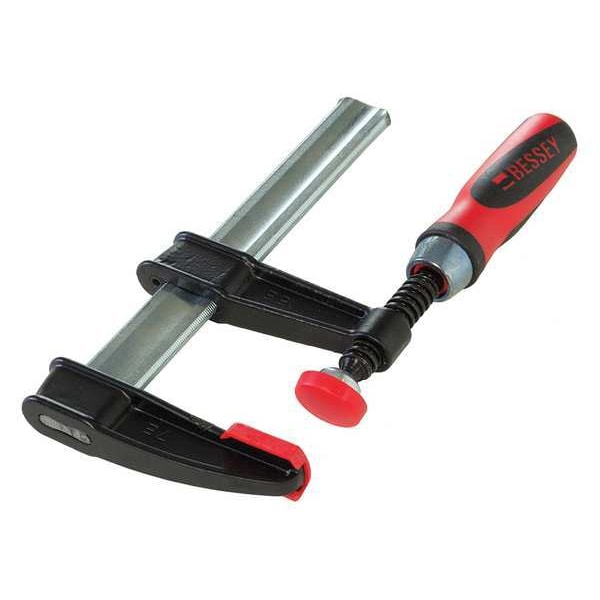

Bessey 6 in Bar Clamp, Composite Plastic Handle and 2 1/2 in Throat Depth TGJ2.506+2K - main

6 in Bar Clamp, Composite Plastic Handle and 2 1/2 in Throat Depth

  • Mfr # TGJ2.506+2K

  • Zoro # G8798605

product price: $22.19
/ea

Key Features

Type
Light Duty TGJ2
Handle Material
Composite Plastic
Throat Depth (In.)
2 1/2 in
Max. Jaw Opening (In.)
6 in
Includes
Clamp Anvil, Ergonomic Handle, Plastic Protective Pads
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TGJ2.506+2K
Zoro #
G8798605
UPC #
091162009000
Country of Origin
Germany

Dimensions

Throat Depth (In.)
2 1/2 in
Screw Size (In.)
35/64
Bar Width (In.)
1 in
Nominal Rail Size (In.)
1
Width (In.)
6 in
Bar Size (In.)
1 5/32 in
Width
6"
Spindle Dia. (In.)
35/64
Bar Thickness (In.)
15/64 in
Handle Length (In.)
4 1/4 in
Throat Depth
2 1/2 in
Overall Width3
6 in
Throat Depth1
2 1/2 in
Bar Width
1 in
Jaw Pad Width
1 in
Handle Length
4 1/4 in
Bar Thickness
1/4 in
Spindle Diameter1
9/16 in

Details

Item
Bar Clamp
Type
Light Duty TGJ2
Handle Material
Composite Plastic
Max. Jaw Opening (In.)
6 in
Includes
Clamp Anvil, Ergonomic Handle, Plastic Protective Pads
Clamp Face (In.)
45/64
Application
Woodworking
Clamping Surface W (In.)
49/64 in
Clamping Surface D (In.)
1 1/4 in
Bar Material
Steel
Swivel Type
Replaceable
Pad Type
Standard
Nominal Clamping Pressure
600 lb
Swivel Pad (In.)
1
Opening (In.)
6 in
Function
Clamp
Handle Style
Screwdriver
Jaw Pad Type
Swivel
Clamping Force1
600 lb
Bar Type
Profiled Rail
Sliding Mechanism
Bar Slide
Clamping Capacity1
6 in
Clamping Force
600 lb

Description

The BESSEY - TGJ2.506+2K is a bar clamp designed for woodworking applications. The bar clamp features a long, rigid steel bar with a fixed head at one end and an adjustable sliding head at the other. This allows the clamp to hold parts in place during gluing, fastening, or machining. Its profiled rail design provides compatibility with accessories.

Key Features of the BESSEY - TGJ2.506+2K Bar Clamp:

  • Application: Suitable for woodworking applications ranging from assembly, gluing to fastening.
  • Bar Material: Steel construction.
  • Bar Dimensions: Boasts a bar size of 1 5/32 in and a bar thickness of 15/64 in, enabling the clamp to handle a variety of workpiece sizes.
  • Handle Features: Screwdriver-style handle; material: composite plastic.
  • Clamping Capacity: Maximum clamping force: 600 lb.
  • Jaw Pad Type: Swivel jaw pad.
  • Inclusions: Includes clamp anvil and plastic protective pads.
