Bison Gear & Engineering

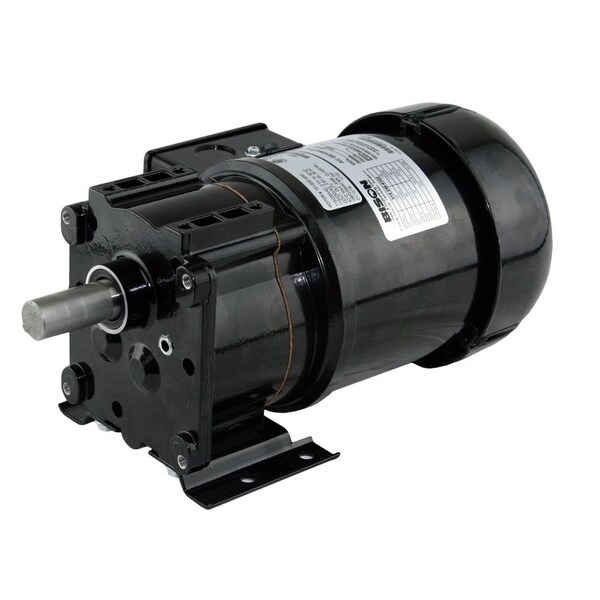

AC Gearmotor, 16RPM, 115/230V

product price: $632.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Length Less Shaft 9.39 in
  • Standards RoHS Compliant
  • Gear Material Steel (Balance Spur)
  • Overall Length 11.29 in
  • Gear Type Spur
See all product information

Product Information

Dimensions

Length Less Shaft 9.39 in
Overall Length 11.29 in
Mount Hole Center-to-Center Width 1.5 in
Output Connection Depth 1 7/8 in
Output Shaft Diameter 3/4 in
Keyway Width 3/16 in
Mount Hole Center-to-Center Length 4 in
Housing Mount Hole Size 0.28 in
Output Shaft Length 1 1/2 in
Keyway Length 1 in
Keyway Depth 3/16 in

Details

Item AC Gearmotor
Standards RoHS Compliant
Gear Material Steel (Balance Spur)
Gear Type Spur
Includes Junction Box
Capacitor Required Yes
Rotation CW/CCW
Motor Type Permanent Split Capacitor
Phase Three
Gear Ratio 102.4:1
Lubrication Oil
Shaft Orientation Parallel
Housing Material Die Cast Aluminum
Color Black
Features Mounted Capacitor on PSC Units, Mounted External on 1/4 in HP, Inside J-Box on 1/6 in HP, Rear Shaft Extension (1-Phase Units Only)
Motor Insulation Class B
Frequency 0.833333333 Hz
Motor Duty Class Continuous
Maximum Output Speed 16 RPM
Housing Material Finish Powder Coated
Number of Housing Mount Holes 4
Maximum Torque 350 in-lb
AGMA Gear Class Class 9
IP Rating IP44
Keyway Type Square
Mounting Orientation Any Angle
Number of Stages 3
Motor Enclosure Totally Enclosed Fan-Cooled
Shaft Material Steel
Input Horsepower 0.17 hp
Full Load Current 1.4/1.1 A @ 115V, 50/60 Hz, 2.6/2.1 A @ 115V, 50/60 Hz
Bearing Type Ball on Motor, Needle with Thrust Ball
Includes Junction/Conduit Box Yes
Operating Voltage 115/230V AC

Description

AC Gearmotor, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Maximum Torque 350 in-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Gear Ratio 102.4:1, Shaft Orientation Parallel, Motor Insulation Class B, Includes Junction/Conduit Box Yes, Motor Duty Class Continuous, AGMA Gear Class Class 9
