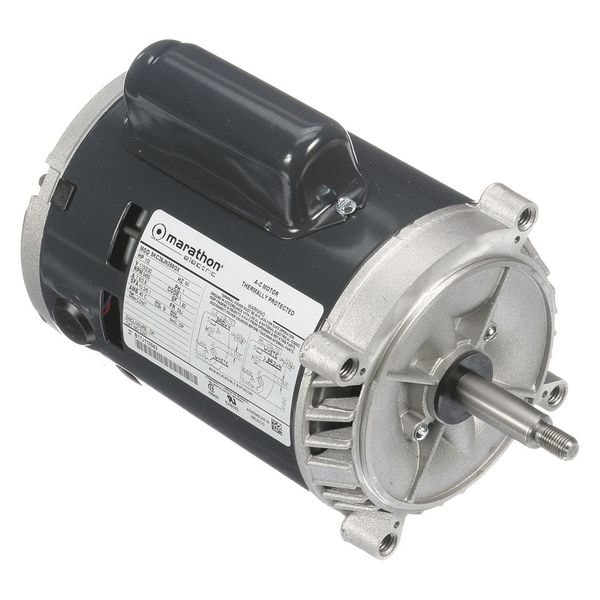

Mtr, Cap St, 1/2 HP, 3450,115/230V, 56J

  • Mfr # 5KC36JN269X
  • Zoro # G2238625
product price:
$
218.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps
7.6, 3.8 A
Motor Bearings
Ball
Voltage
115V AC, 230V AC
Motor Mounting Position
All Angle
Shaft Length
2 3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KC36JN269X
Zoro #
G2238625
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 3/8 in
Body Dia.
5.6 in
Overall Length
10 13/16 in
Shaft Dia.
5/8 in
Length Less Shaft
8 7/16 in
Bolt Circle Dia.
2 15/16 in
Height
6 1/2 in
Shaft Diameter
5/8 in
Bolt Circle Diameter
2 15/16 in
Frame Size
56J
Body Diameter
5.6 in
Wire Rope Length
10 13/16 in
Length
10 13/16 in

Details

Full Load Amps
7.6, 3.8 A
Motor Bearings
Ball
Voltage
115V AC, 230V AC
Motor Mounting Position
All Angle
Ins. Class
B
Motor Enclosure Design
Open Dripproof
Motor Shaft Rotation
CCWSE
Nameplate RPM
3,450
Motor Sub Application
Jet Pump
Item
Jet Pump Motor
Max. Ambient Temp.
40 Degrees C
Motor Design
Capacitor-Start
RPM Range
3,001-3,600
Motor Shaft Design
Threaded
Phase
Single
Includes
Shaft Slinger
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Motor Service Factor
1.6
Nominal Efficiency
62 %
Duty
Continuous
Shaft Material
Stainless Steel
Motor Application
Pump
Hz
60 Hz
HP
1/2
Motor Mounting Type
Face
Standards
CSA, UL
Motor Thermal Protection
Auto
Frame
56J
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Weight
15 lb
Motor Frame Material
Steel
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Number of Speeds
1
Shaft Type
Threaded 7/16-20 UNF-2A
Warranty
2ACC7
Nameplate Service Factor @ 60 Hz
1.6
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
7.6, 3.8 A
Number of Wires
6
Efficiency Rating
Standard Efficiency (IE1)
Frame Material
Steel
Motor Enclosure Type
Open Drip Proof
Bearing Type
Ball
Application
Pump
Shaft Design
Threaded
Insulation Class
B
Frequency
60 Hz
Mounting Position
All Angle
Product Type
Pump Motor
Sub Application
Centrifugal Pump, Jet Pump

Description

Jet Pump Motor, Body Dia. 5.6 in, Bolt Circle Dia. 2 15/16 in, Duty Cycle Continuous, Frame 56J, Hz 60 Hz, Full Load Amps 7.6, 3.8, Height 6 1/2 in, HP 1/2, Includes Shaft Slinger, Ins. Class B, Length Less Shaft 8 7/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
