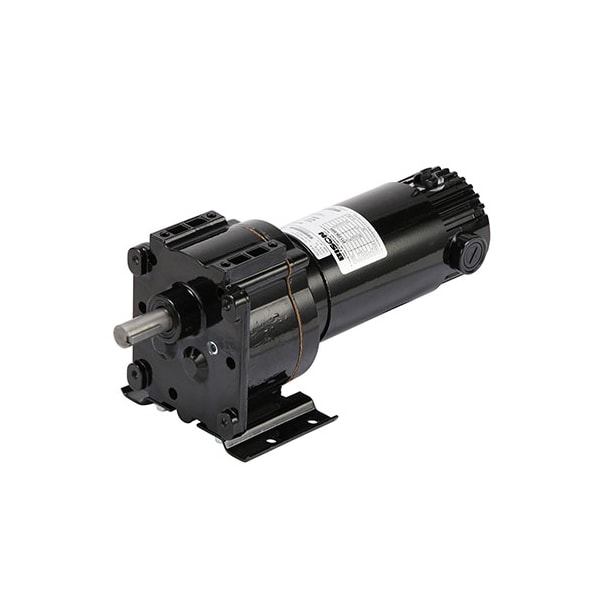

DC Gearmotor, 94RPM, 90V
- Mfr # 011-336-2019
- Zoro # G9651251
product price:Â
$
779.99
/ea
Free Shipping & Returns
Key Features
Motor Type
Permanent Magnet DC
Gear Ratio
19.1:1
Length Less Shaft
8.53 in
Lubrication
Oil
Standards
RoHS Compliant
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 011-336-2019
- Zoro #
- G9651251
- UPC #
- -
- Country of Origin
- United States
- Motor Type
- Permanent Magnet DC
- Gear Ratio
- 19.1:1
- Lubrication
- Oil
- Standards
- RoHS Compliant
- Item
- DC Gearmotor,94RPM,90V
- Overhung Load Capacity
- 242 lb
- Number of Housing Mount Holes
- 4
- Maximum Output Speed
- 136 RPM @ 130 V
- Keyway Type
- Square
- Input Horsepower
- 1/8 hp
- Output Shaft Type
- Keyed
- Motor Duty Class
- Continuous
- Number of Stages
- 2
- Full Load Current
- 1.3 A
- Operating Voltage
- 90V DC
- IP Rating
- IP43
- Maximum Torque
- 76 in-lb
Dimensions
- Length Less Shaft
- 8.53 in
- Overall Length
- 10.53 in
- Overall Width
- 4.08 in
- Overall Height
- 5.6 in
- Keyway Depth
- 3/16 in
- Keyway Length
- 1 in
- Output Shaft Diameter
- 5/8 in
- Output Connection Depth
- 2 in
- Mount Hole Center-to-Center Length
- 4 in
- Keyway Width
- 3/16 in
- Housing Mount Hole Size
- 0.28 in
- Mount Hole Center-to-Center Width
- 1.5 in
- Wire Rope Length
- 10.53 in
- Length
- 10.53 in
Description
DC Gearmotor,94RPM,90V, Output Shaft Type Keyed, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Maximum Torque 76 in-lb, Overhung Load Capacity 242 lb, Gear Ratio 19.1:1, Input Horsepower 1/8 hp, Output Connection Depth 2 in, Output Shaft Diameter 5/8 in
