Shop MARATHON

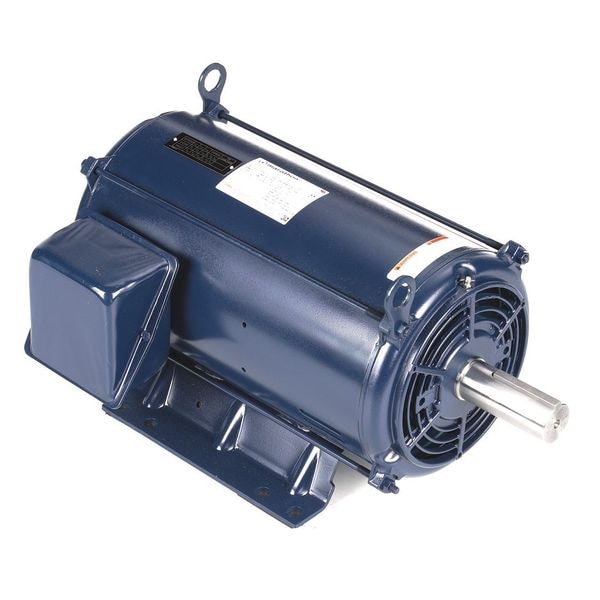

3-Phase Belt Drive Motor, 10, 4 7/16 HP, 256T Frame, 460V AC Voltage, 1,760/1,175 Nameplate RPM

  • Mfr # 256TTDX7264
  • Zoro # G9827903
product price:
$
2,009.99
/ea
Additional $250.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
10, 4 7/16
No. of Speeds
2
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
256TTDX7264
Zoro #
G9827903
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
1 5/8 in
Shaft Length
4 3/16 in
Overall Length
22 5/16 in
Length Less Shaft
18 1/8 in
Body Diameter
9.5 in
Frame Size
256T
Shaft Diameter
1 5/8 in

Details

Item
Belt Drive Motor
Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
10, 4 7/16
No. of Speeds
2
RPM Range
1,701-1,800
Nameplate RPM
1,760/1,175
Voltage
460V AC
Frame
256T
Motor Mounting Type
Rigid Base
Motor Thermal Protection
None
Motor Service Factor
1.15
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
Phase
Three
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Motor Bearings
Ball
Full Load Amps
12,6.5 A
Ins. Class
B
Motor Shaft Rotation
CW/CCW
Duty
Continuous
Hz
60 Hz
Motor Mounting Position
Horizontal
Standards
CSA (LR2025), UL (E49747)
Frame Material
Steel
Nominal Efficiency
87.5 %
Motor Frame Material
Steel
Max. Ambient Temp.
104 Degrees F
Motor Shaft Design
Keyed
Usable @ 200V
No
Usable @ 208V
No
Duty Cycle
Continuous
Weight
214 lb
Finish
Blue Epoxy
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Product Type
Fan and Blower Motor
Full Load Current @ 60 Hz
12.0 A
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Motor Enclosure Type
Open Drip Proof
Drive Type
Belt Drive
Application
Fan/Blower
Frequency
60 Hz
Shaft Design
Keyed

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 10 hp, 4 4/9 hp HP, Nameplate RPM 1,760/1,175 RPM, No. of Speeds 2, Voltage 460V AC, 12 A Full Load Amps, 256T Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
