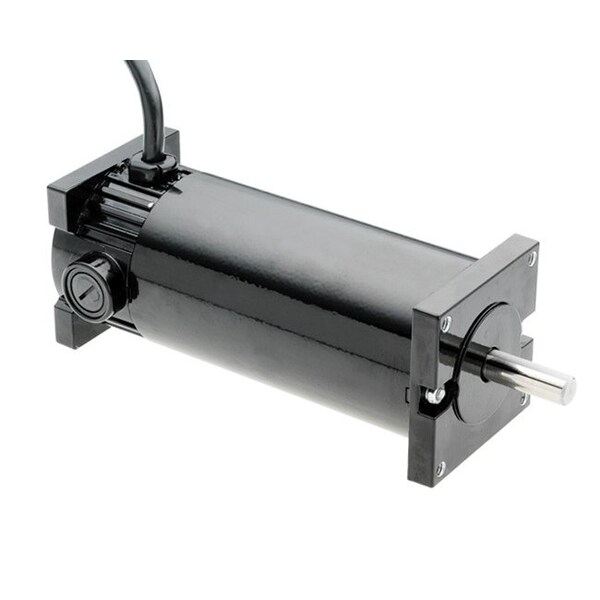

PMDC Motors, 26 Frame, 1750/3580RPM, 12/24V
Mfr # 051-203-4035
Zoro # G9653765
product price: $360.99
/ea
Free Shipping & Returns
Key Features
Motor Type
Permanent Magnet DC
Length Less Shaft
6.89 in
Standards
RoHS Compliant
Overall Length
8.39 in
Overall Width
3.15 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
051-203-4035
Zoro #
G9653765
UPC #
-
Country of Origin
United States
Dimensions
Length Less Shaft
6.89 in
Overall Length
8.39 in
Overall Width
3.15 in
Overall Height
3.15 in
Output Shaft Diameter
1/2 in
Output Connection Depth
1 1/2 in
Details
Motor Type
Permanent Magnet DC
Standards
RoHS Compliant
Item
PMDC Motors,26 Frame,1750/3580RPM,12/24V
Color
Black
Input Horsepower
1/7 hp
Operating Voltage
12/24V DC
Housing Material Finish
Gloss Powder Coated
Maximum Output Speed
3580 RPM @ 24 V
Full Load Current
12 A
Motor Duty Class
Continuous
Shaft Material
Carbon Steel
Maximum Torque
5.6 in-lb
IP Rating
IP43
Bearing Type
Double-Shielded Ball
Description
PMDC Motors,26 Frame,1750/3580RPM,12/24V, Operating Voltage 12/24V DC, Motor Type Permanent Magnet DC, Maximum Torque 5.6 in-lb, Input Horsepower 1/7 hp, Output Connection Depth 1 1/2 in, Output Shaft Diameter 1/2 in, Bearing Type Double-Shielded Ball, Color Black
