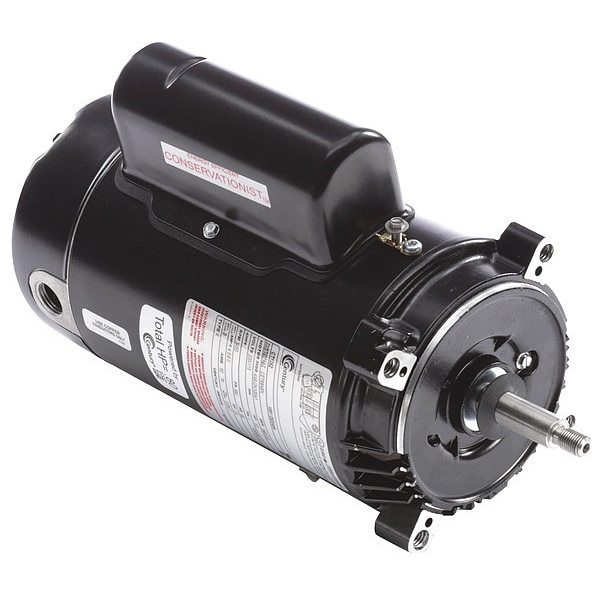

Pool Pump Motor, Capacitor-Start/Run, 1/2 HP, 56J Frame, 3,450 Nameplate RPM

  • Mfr # CT1052

  • Zoro # G3343234

product price:  $360.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
1/2
Motor Service Factor
1.6
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CT1052
Zoro #
G3343234
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
2 5/8 in
Overall Length
14 11/16 in
Length Less Shaft
12 1/8 in
Body Dia.
5.6 in
Height
11 in
Shaft Dia. (In.)
5/8
Body Diameter
5.6 in
Shaft Diameter
5/8 in
Frame Size
56J

Details

Item
Pool and Spa Pump Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
1/2
Motor Service Factor
1.6
RPM Range
3,001-3,600
Nameplate RPM
3,450
Frame
56J
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
115/230V AC
Motor Mounting Type
Face
Full Load Amps
4.0/8.0 A
Hz
60 Hz
Motor Efficiency Group
Energy Efficient
Motor Application
Pump
Finish
Black
Shaft
Threaded 7/16"-20 UNF-2A RH 11/16 in From End
Ambient Temperature
50 Degrees C
Motor Bearings
Ball
Motor Sub Application
Pool and Spa Pump
Ins. Class
B
Motor Thermal Protection
Auto
Shaft Material
303 Stainless Steel
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Standards
CSA (LR43341/LR94643), UL (E44549/E25022), UL 1081 Approvable
Motor Flange Material
Aluminum
Max. Ambient Temp.
50 Degrees C
Motor Mounting Position
Horizontal
Weight
23 lb
Duty Cycle
Continuous
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Motor Shaft Design
Threaded
Motor Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1.6
Frequency
60 Hz
Product Type
Pump Motor
Application
Pump
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
4.0/8.0 A
Shaft Design
Threaded
Insulation Class
B
Number of Wires
11
Ambient Temperature - Maximum
50 Degrees C
Sub Application
Pool and Spa Pump
Mounting Position
Horizontal
Number of Speeds
1
Frame Material
Steel
Bearing Type
Ball

Description

Pool and Spa Pump Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Finish Black, Frame 56J, Hz 60 Hz, Full Load Amps 4.0/8.0, Height 11 in, HP 1/2, Ins. Class B, Length Less Shaft 12 1/8 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: CA, NY
