  11. Variable Frequency Drive, Max. HP 1

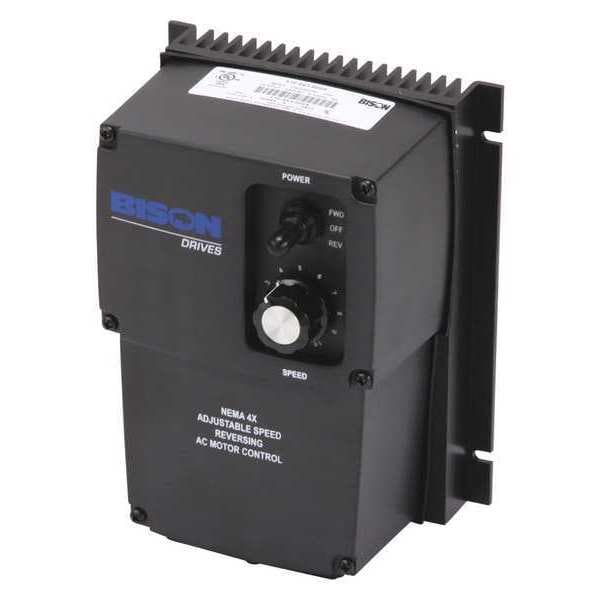

Bison Gear & Engineering Variable Frequency Drive, Max. HP 1 170-543-0004 - main

Variable Frequency Drive, Max. HP 1

  • Mfr # 170-543-0004

  • Zoro # G5565309

product price: $808.99
/ea
Free Shipping & Returns

Key Features

Output Phase AC
Three
Control Type
Dial
Protection
Overcurrent, Overvoltage, Undervoltage
Standards
CE, UL
Height
4.0 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
170-543-0004
Zoro #
G5565309
UPC #
845171006846
Country of Origin
United States

Dimensions

Height
4.0 in
Width
5.0 in
Depth
6.0 in
Overall Depth
4 5/8 in
Overall Height
7 1/4 in
Overall Width
5 5/8 in

Details

Output Phase AC
Three
Control Type
Dial
Protection
Overcurrent, Overvoltage, Undervoltage
Standards
CE, UL
With Bypass / No Bypass
No Bypass
Key Pad Lockout
None
Output Voltage
230V AC
Torque @ 1 Hz
100%
Max. HP
1 hp
Adjustable Deceleration Time
0 to 12 sec
Control Method
Dial
With Line Contactor / No Line Contactor
No Line Contactor
Digital Readout
No
Input Phase AC
Single
For Use With
3-Phase Inverter Duty Motor
Accepts Input Control Signal
Yes
Item
Variable Frequency Drive
Starting Torque
150%
Enclosure
Totally Enclosed
Output Frequency Range
0 to 120 Hz
Max. Output Amps
4 A
Start/Stop Control
Manual
Dynamic Braking
No
Input Voltage
230V AC
Adjustable Acceleration Time
0 to 12 sec
Input Frequency
50/60 Hz
Maximum Output Current
4 A
Enclosure Rating
NEMA 4X
Maximum Output Power
1 hp
Enclosure Material
Plastic
Application
Industrial General Purpose Drive
Form Factor
1.1
Number of Inputs
(2) Analog
Input Type
Analog
Torque Application
Constant Torque, Variable Torque
Series
Variable Frequency Drives
Input Voltage Range
104-127V AC; 208-253V AC
Output Type
Analog
Ethernet Port Included
No
Output Voltage Range
208-253V AC
Style
Heat Sink
Number of Outputs
(1) Analog
Color
Purple
Brake Chopper Included
No

Description

Variable Frequency Drive, Input Voltage 230V AC, Input Phase AC Single, Input Frequency 50/60 Hz, Maximum Output Power 1 hp, Maximum Output Current 4 A, Output Voltage 230V AC, Output Phase AC Three, Output Frequency Range 0 to 120 Hz, Enclosure Rating NEMA 4X
