Shop CENTURY

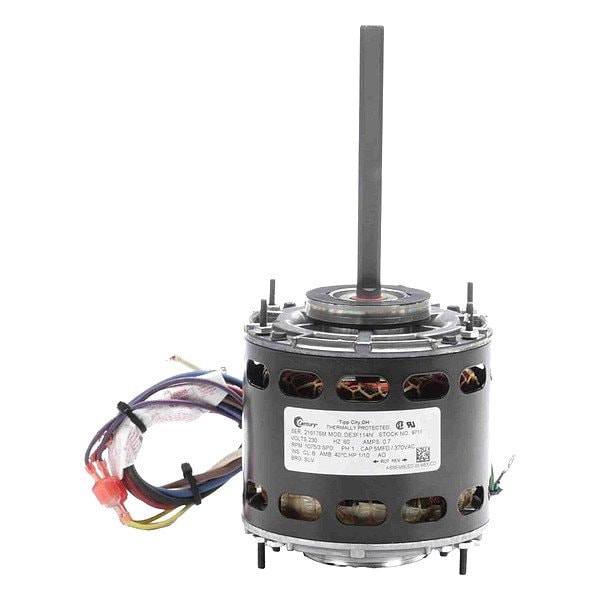

Fan and Blower Motor, 1/10 hp

  • Mfr # 9711A

  • Zoro # G515271497

product price:  $152.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/10
RPM Range
1,001-1,100
No. of Speeds
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9711A
Zoro #
G515271497
UPC #
786674077615
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
5 3/4 in
Overall Length
10 5/8 in
Body Dia.
5 in
Lead Length
13 in
Length Less Shaft
4 7/8 in
Body Diameter
5 in
Shaft Diameter
1/2 in
Frame Size
42

Details

Item
Fan and Blower Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/10
RPM Range
1,001-1,100
No. of Speeds
3
Voltage
230V AC
Motor Shaft Rotation
CW/CCW
Frame
42
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Ring
Motor Mounting Position
All Angle
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Nameplate RPM
1,075
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
230V AC
Motor Shaft Design
Flat
Ins. Class
B
Hz
60 Hz
Capacitor Required
Capacitor Included
Duty
Air Over
Full Load Amps
0.72 A
Application
Room Air Conditioner
Motor Bearings
Ball
Motor Service Factor
1
Standards
CSA
Shaft Design
Flat
Wattage
75 W
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
0.72 A
Drive Type
Direct Drive
Number of Speeds
3
Frequency
60 Hz
Usable @ 208V
Not Usable at 208V
Motor Enclosure Type
Open Air Over
Sub Application
Condenser Fan
Product Type
Room Air Conditioner Motor
Mounting Position
All Angle
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel

Description

Fan and Blower Motors
