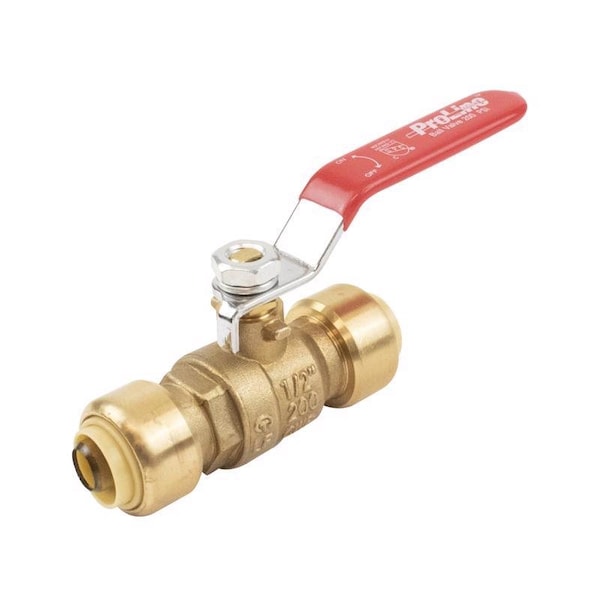

B&K Proline 1/2 in. Brass Push Fit Ball Valve Full Port Quarter-Turn Lever
Mfr # 1107-063
Zoro # G810519393
product price:
$
20.45
/ea
Key Features
Connection Type
Inlet: PF; Outlet: PF
Overall Height
2.27 in
Body Material
Brass
Overall Length
5.16 in
Standards
NSF/ANSI 372, IAPMO/ANSI Z1157, NSF/ANSI 61
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1107-063
- Zoro #
- G810519393
- UPC #
- 32888221796
- Country of Origin
- China
Dimensions
- Overall Height
- 2.27 in
- Overall Length
- 5.16 in
- Overall Width
- 1.08 in
Details
- Connection Type
- Inlet: PF; Outlet: PF
- Item
- Ball Valve Series 7690PF
- Body Material
- Brass
- Standards
- NSF/ANSI 372, IAPMO/ANSI Z1157, NSF/ANSI 61
Description
The Ball Valve is our lighter ball valve line offering for light commercial and residential applications. Constructed of forged brass, this valve is designed to work with oil, gas and water operations up to 200 PSI. This valve is designed with a full port allowing for maximum flow rate and features a lever handle allowing for easy on/off operation. The packing gland feature tightens the internal components when the stem leaks, ensuring a more extended valve operational life. 316 stainless steel grip ring for strength and corrosion resistance.
- • Full port for maximum flow rate
- • Packing gland - blowout proof stem design allows users to stop leaks at the valve stem
- • PTFE seat & packing
- • Rust-resistant heavy-duty handle with vinyl grip
- • Integrated brass seal gland increases durability & work life
- • Rubber o-rings ensure a water-tight seal
