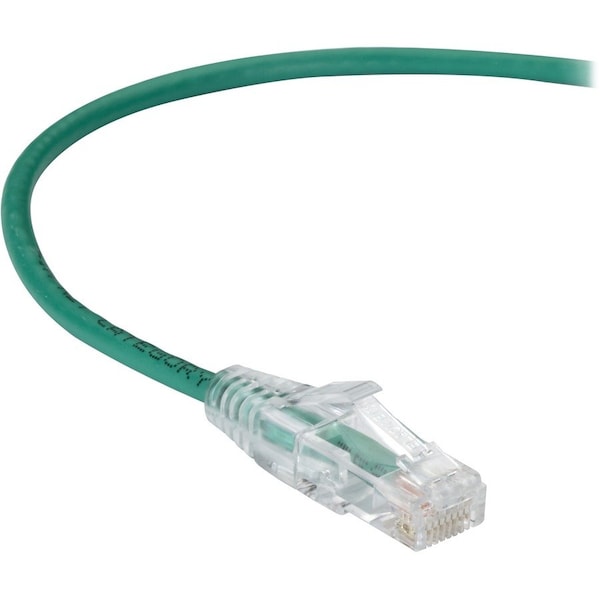

Slim-Net Cat6A 28-Awg 500-Mhz Stranded Ethernet Patch Cable -
- Mfr # C6APC28-GN-10
- Zoro # G9504786
product price:Â
$
22.69
/ea
Key Features
Connector Type - Patch Cord
(1) RJ45 (Male); (1) RJ45 (Male); Snagless Connector
Standards
CE, UL/cUL
Solid / Stranded
Stranded
Frequency
Up to 500 MHz
Conductor Size
28 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- C6APC28-GN-10
- Zoro #
- G9504786
- UPC #
- 822088126980
- Country of Origin
- Unknown
Dimensions
- Conductor Size
- 28 AWG
- Connector Plating Thickness
- 50 microns
Details
- Item
- Ethernet Patch Cable
- Connector Type - Patch Cord
- (1) RJ45 (Male); (1) RJ45 (Male); Snagless Connector
- Standards
- CE, UL/cUL
- Solid / Stranded
- Stranded
- Frequency
- Up to 500 MHz
- Shielded
- No
- Jacket Material
- PVC
- Impedance
- 100 +/-15 ohms
- Mutual Capacitance
- 5600 pF/100 m
- PS-ACR
- 100 MHz: 22.4 dB/100 m; 250 MHz: 3.3 dB/100 m
- PS-ACRF
- 100 MHz: 24.8 dB/100 m; 250 MHz: 16.8 dB/100 m; 500 MHz: 10.8 dB/100 m
- Propagation Delay
- 250 MHz: 535.5 ns/100 m max.
- Resistance
- 22.3 ohms/100 m
- Pair-to-Ground Capacitance
- 330 pF/100 m
- NEXT
- 100 MHz: 44.3 dB/100 m; 250 MHz: 38.3 dB/100 m; 500 MHz: 33.8 dB/100 m
- PS-NEXT
- 100 MHz: 42.3 dB/100 m; 250 MHz: 36.3 dB/100 m; 500 MHz: 31.8 dB/100 m
- ACR
- 100 MHz: 24.4 dB/100 m; 250 MHz: 5.3 dB/100 m
- Delay Skew
- 1-10 MHz: 40 +/- 10 nS/100 m
- Insertion Loss (Maximum)
- 100 MHz: 19.8 dB/100 m; 250 MHz: 32.8 dB/100 m; 500 MHz: 48.9 dB/100 m
- ACRF
- 100 MHz: 27.8 dB/100 m; 250 MHz: 19.8 dB/100 m; 500 MHz: 13.8/100 m
