Shop LEVITON

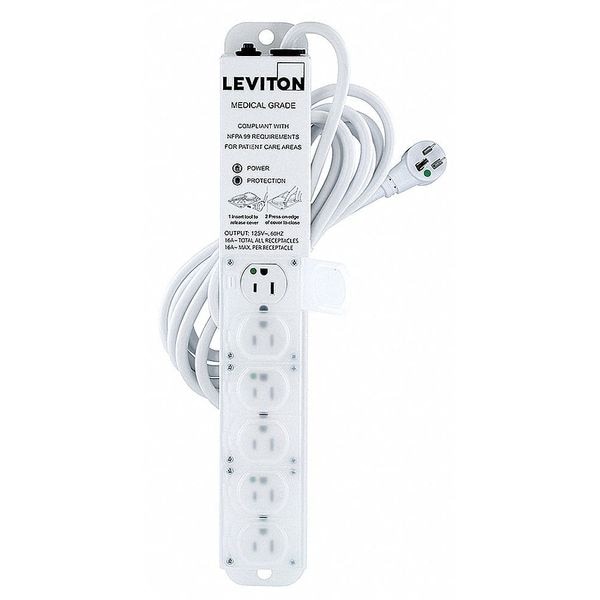

Outlet Strip, Surge, Rack Mounted, 6 5-15R, 5-15P, 15 ft., White

  • Mfr # 5306M-1S5

  • Zoro # G104186782

product price:  $193.99
/ea
Free Shipping & Returns

Key Features

Type
Surge, Rack Mounted
Total Number of Outlets
6
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
White
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5306M-1S5
Zoro #
G104186782
UPC #
078477611890
Country of Origin
Mexico

Dimensions

Cord Length
15 ft.
Width
2 19/32 in
Length
16 7/8 in
Height
1 21/32 in
Wire Size
14 AWG
Outlet Strip Length
16 7/8 in

Details

Item
Outlet Strip
Type
Surge, Rack Mounted
Total Number of Outlets
6
Number of Outlets
6
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
White
Gauge/Conductor
14/3
Standards
ANSI/IEEE: Category A, NFPA: NFPA 99 2012 ed, UL 1363A and CSA C22.2: No. 21, UL 1449 3rd Ed and CSA C22.2: No. 8, UL 60601-1 and CSA C22.2: No.60601-1, UL 60950-1 and CSA C22.2: No. 60950-1
Voltage
125V AC
Special Features
Special Purpose Relocatable Power Tap (SPRPT)
Max. Surge Current
27 kA
Hz
60 Hz Hz
Power Indicator
Yes
Max. Amps
15 A
Application
Medical
Noise Attenuation
6dB to -29dB (100kHz to 100MHz)
Trade Designation
SJT
For Use With
Isolated Power Systems
Housing Material
Metal
Mounting Style
Screw
Rated Joules
644
Surge Protection Indicator
Yes
Medical Facility Use
Outside Patient Care Areas (UL 1449); Patient Care - Only When Permanently Mounted (UL 1363A); Patient Care (UL 60601-1)
Surge Protection
Yes
Maximum Leakage Current
<100µA
Joules Rating
644J
Line Cord
#14/3 SJT
Operating Temperature
0°C to 40°C
Noise Filtering
-6dB to -29dB (100kHz to 100MHz)
Number of Receptacles
6
Grade
Medical
Voltage Protection Rating (VPR) L-N, L-G, N-G
600V, 600V, 500V
UL 60950-1 & CSA C22.2
No. 60950-1
UL 1363A & CSA C22.2
No. 21
Outlet Covers
Polypropylene
Enclosure
Powder Coated Steel
Frequency
60 Hz
HG Outlet Configuration
NEMA 5-15R
Maximum Surge Current, Per Mode (L-N)
27kA
Number of Conductors
3
Number of Outlet Rows
6
Product Type
Outlet Strip
Medical Facility Use UL Rating
UL 1363A, UL 1449, UL 60601-1
NEMA Plug Configuration
5-20P
Plug Style
Straight
Communication Port
None
Includes
Locking Cover
NEMA Receptacle Configuration
5-15R
Maximum Current
15 A
Maximum Surge Current
27 kA
Rated Energy Absorption
644 J

Description

Surge Protected Outlet Strip, Total Number of Outlets 6, Cord Length 15 ft, Rated Joules 644, Application Hospital and Medical Facility, Housing Material Steel, Max. Amps 15 A, Power Indicator Yes, Receptacle Configuration Hospital Grade, Plug Configuration NEMA 5-15P, Medical Facility Use Outside Patient Care Areas (UL 1449); Patient Care - Only When Permanently Mounted (UL 1363A); Patient Care (UL 60601-1), Voltage 125V AC, Length 16 7/8 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
