Blackburn

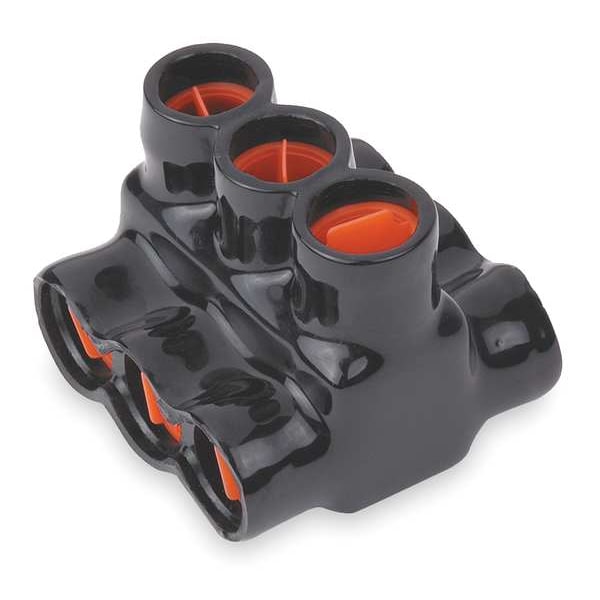

Insulated Multitap Connector, 3.00 In. L

product price: $65.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connector Type Double-Sided Entry
  • No. of Ports 3
  • Min. Conductor Size 10 AWG
  • Max. Conductor Size 250 kcmil
  • Stud Size 5/16 in
See all product information

Product Information

Dimensions

Min. Conductor Size 10 AWG
Max. Conductor Size 250 kcmil
Stud Size 5/16 in
Length 3.0 in
Width 2.75 in
Length (Straight Wireway) 3.0 in
For Wire Size 1 AWG, 1/0 AWG, 10 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 4 AWG, 4/0 AWG, 6 AWG, 8 AWG
For Stranded Copper Wire Size - Minimum 10 AWG
For Stranded Copper Wire Size - Maximum 250 kcmil
Overall Width 2.75 in
Overall Length 3 in
Hex Size 5/16 in

Details

Item Insulated Multitap Connector
Connector Type Double-Sided Entry
No. of Ports 3
Insulation Material PVC
Material Aluminum
Head Style Hex
Direct Burial Rated No
Max. Voltage 600V AC/DC
Standards CSA 6591, UL E9809
Screw Material Steel
Body Material Aluminum
Color Black
Number of Ports 3
For Conductor Material Aluminum, Copper
Maximum Voltage 600 V
Compatible with Product Type Aluminum Conductors, Copper Conductors, Copper-Clad Aluminum Conductors
Screw Finish Tin Plated
Special Features All Cable Entry are Equipped With An Anti-Oxidation Compound, Eliminates Insulation Failures, Insulated, Reduces Outage Costs, Space Efficiencies
Maximum Operating Temperature 194 Degrees F
Tap Shape T
Product Type Multi-Tap/Port Connector
Product Name BLACKBURN MECHANICAL
Voltage Rating 600 V
Features PVC Insulation eliminates insulation failures and reduces outage costs. Removable port and screw plugs.; Compact design provides space efficiencies.; All cable entry are equipped with an anti-oxidation compound.

Description

Insulated Multitap Connector, Body Material Aluminum, Color Black, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 10 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material PVC, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 3, Standards CSA 6591, UL E9809, Compatible with Product Type Aluminum Conductors, Copper Conductors, Copper-Clad Aluminum Conductors
