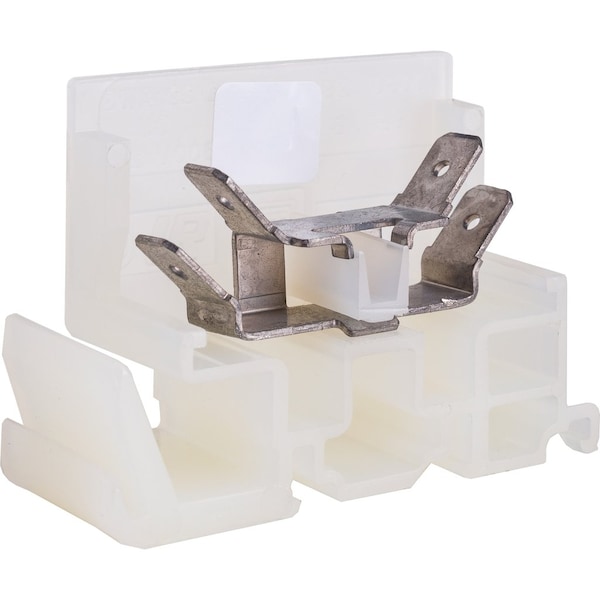

Terminal Block, Pass-Through, 1 Pole, 20 A, 600 V AC/DC, 12 AWG, Natural

  • Mfr # 9080GS6

  • Zoro # G706602901

product price:
$
3.85
/ea

Key Features

Terminal Block Type
Pass-Through
Mounting Type
DIN
Connection Type
Push-In
Number of Poles
1
Number of Tiers
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9080GS6
Zoro #
G706602901
UPC #
785901155355
Country of Origin
Mexico

Dimensions

For Minimum Wire Size
22 AWG
For Maximum Wire Size
12 AWG
Overall Width
2.19 in
Overall Depth
0.75 in
Overall Length
1.69 in
Wire Rope Length
1.69 in
Length
1.69 in

Details

Item
Terminal Block
Terminal Block Type
Pass-Through
Mounting Type
DIN
Connection Type
Push-In
Number of Poles
1
Number of Tiers
1
Current
20 A
Maximum Voltage
600 V AC/DC
Circuit Protection Type
None
For Conductor Material
Copper
Housing Color
Natural
Standards
CE Certified, CSA File 62144 Class 6228 01, UL Recognized E60616 CCN XCFR2
Compatible Manufacturer Model Number
GF6B
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
257 Degrees F
RoHS Compliant
Yes
Special Features
Both UL and CSA have the Block Rated at up to 600 Vac or Vdc, Linergy NEMA Sectional Terminal Blocks are for Terminating Wires in a Control Panel and are Designed to NEMA Standards, The Nylon Block is Molded in Black, This Block is UL Component Recognized for up to 70 Amperes and CSA Certified for up to 40 Ampere, This Terminal Block has a Box Lug Connector for use with Solid or Stranded Copper Wires from #22 Through #10 AWG
Housing Material
Nylon
Ambient Air Temperature For Operation
-40-257°F
Number Of Terminal Blocks
16 per foot
[Ue] Rated Operational Voltage
600 V AC/DC
Electrical Connection
Faston connector
Localisation On Device
standard
Number of Connections
4

Description

Terminal Block, Circuit Protection Type None, Connection Type Faston Connector, Current 20 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Natural, Maximum Voltage 600 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Not Applicable, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 0.75 in, Overall Length 1.69 in, Overall Width 2.19 in
