Shop MADISON

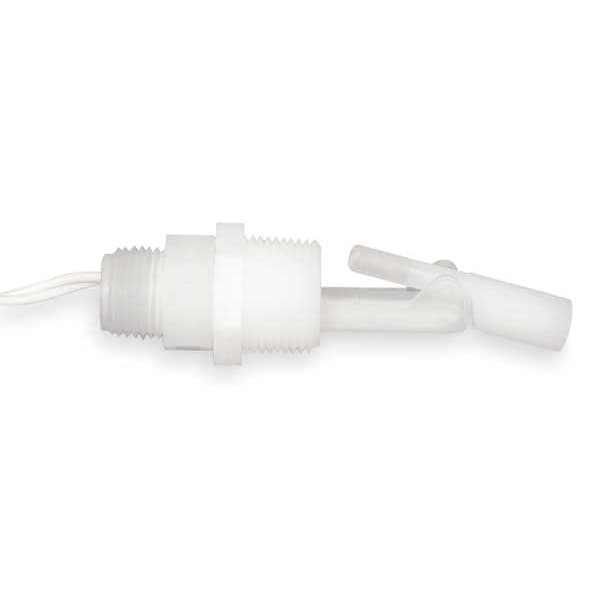

SPST Tank Liquid Level Switch Selectable 240VAC 100 psi

  • Mfr # M8700-C

  • Zoro # G1089076

product price:  $17.39
/ea

Key Features

Voltage
240VAC
Max. Pressure
100 psi
Max. Current
0.28 A
Float Dia.
0.5 in
Stem Length
2.25 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M8700-C
Zoro #
G1089076
UPC #
-
Country of Origin
United States

Dimensions

Float Dia.
0.5 in
Stem Length
2.25 in
Conduit Size
1/2 in
Width
0.6 in
Overall Length
2.25 in
Float Length
2.06 in
Tank Connection Size
1/2 in x 3/4 in NPT
Overall Width
0.6 in
Float Diameter
0.6 in
Stem Thread Size
3/4 in NPT
Wire Rope Length
2.25 in

Details

Voltage
240VAC
Max. Pressure
100 psi
Item
Alternator Closed Liquid Level Switch
Max. Current
0.28 A
Standards
CE, CSA, NSF, UL Listed
Body Material
Polypropylene
Float Switch Contact Form
SPST
Switch Function
Selectable
Float Switch Float Material
Polypropylene
VA Rating
30
Contact Form
SPST
Operating Temp. Range
221 Degrees F Max.
Float Specific Gravity
0.6
Stem Material
Polypropylene
Mounting
Side
Max. Voltage
240 V
Float Material
Polypropylene
Electrical Connections
22 ga MTW Coated 24 in Leads
Series
M8700-C
Product Type
Alternator Closed Liquid Level Switch
Proof Pressure
100 psi
Voltage Rating - Maximum
120 V AC, 240 V AC
Current Rating - Maximum
0.28 A
Minimum Media Specific Gravity
0.63
Operating Temperature - Maximum
221 Degrees F
Electrical Connection
Pre-Wired Cable
Mounting Style
Side
Switch Structure
SPST

Description

Alternator Closed Liquid Level Switch, Switch Function Selectable, Side Mounting, Tank Connection Size 1/2 in x 3/4 in NPT, Max. Pressure 100 psi, VA Rating 30, Operating Temp. Range 221 Degrees F Max., Overall Length 2.25 in, Float Material Polypropylene, Float Length 2.06 in, Float Dia. 0.5 in, Stem Material Polypropylene, Stem Length 2.25 in, Height -, Width 0.6 in, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material Polypropylene, Conduit Size 1/2 in
