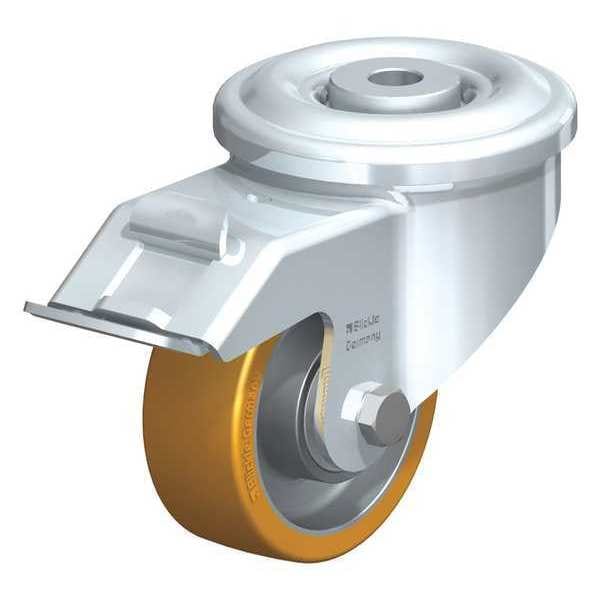

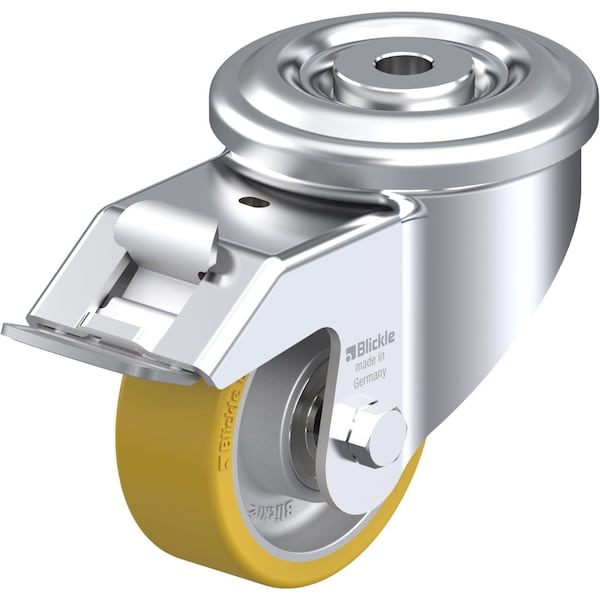

Kingpin Swvl Caster, Poly, 3-1/8", Brake

Name: Kingpin Swvl Caster, Poly, 3-1/8", Brake
Brand: Blickle
SKU: G9659100
Price: 97.49 USD
Availability: InStock

97.49

/ea

Caster Sub-Type

Swivel

Caster Product Group

Swivel Caster With Brake

Wheel Dia.

80 mm

Wheel Width

30 mm

Mounting Bolt Dia.

M12

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Item: Swivel Hollow Kingpin Caster With Brake
Caster Sub-Type: Swivel
Caster Product Group: Swivel Caster With Brake
Non-Marking: Yes
Number of Wheels: 1
Frame Finish: Zinc Plated
Caster Frame Material: Steel
Wheel Core Material: Aluminum
Core Color: Silver
Application: Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards: RoHS, ICWM
Includes: Stop-Fix Total-Lock Brake
Caster Raceway: Double Ball
Caster Temp. Range: -25 Degrees To 70 Degrees C
Replacement Wheel: Mfr. No. ALTH 80/15K
Caster Wheel Bearings: Precision Ball
Extended Lead: No
Caster Load Rating Range: Medium Duty
Caster Swivel Lock Type: Total-Lock
Caster Brake Included: Yes
Caster Wheel/Tread Material: Extrathane Polyurethane
System of Measurement: Metric
Tread: Standard
Caster Mounting Type: Hollow Kingpin
Caster Break Type: Stop Fix Brake (Total Lock)
Resistant To: High Chemical Resistance To Many Aggressive Substances
Tread Shape: Standard
Wheel/Tread Hardness: 92 Shore A
Includes Thread Guards: No
Swivel Raceway Type: Double Ball
Tread Color: Light Brown
Series: LKR Series
ESD Conductive: No
Load Capacity: 180 kg

Swivel With Brake
