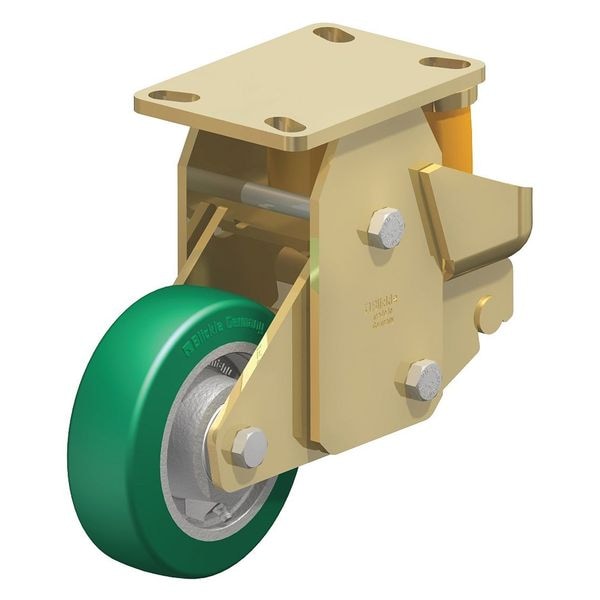

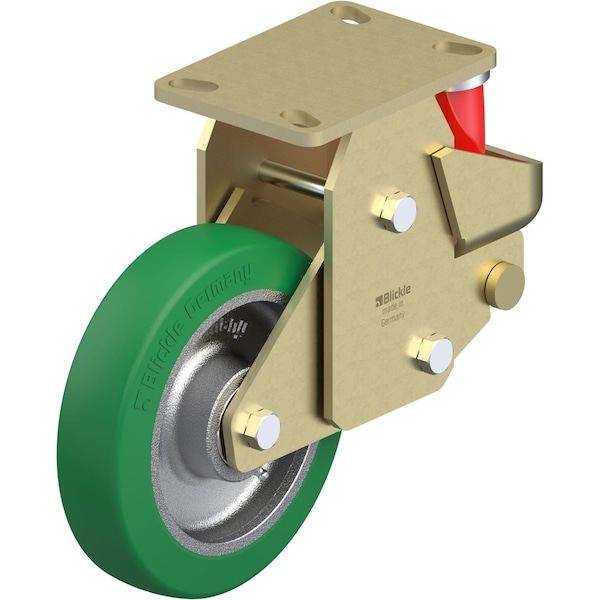

Blickle Rigid Plate Caster, PU, 8", 1760 lb. BSFE-GST 200K-16 - main

Rigid Plate Caster, PU, 8", 1760 lb.

  • Mfr # BSFE-GST 200K-16

  • Zoro # G0896283

product price:  $324.99
/ea
Free Shipping & Returns

Key Features

Caster Frame Material
Steel
Mounting Bolt Dia.
1/2 in
Tread Color
Green
Caster Sub-Type
Rigid
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
BSFE-GST 200K-16
Zoro #
G0896283
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Bolt Dia.
1/2 in
Wheel Width
2 in
Wheel Dia.
8 in
Overall Height
10-7/16 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in

Details

Item
Rigid Caster
Caster Frame Material
Steel
Tread Color
Green
Caster Sub-Type
Rigid
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Extended Lead
No
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated, Yellow Passivated
Standards
RoHS, ICWM
Number of Wheels
1
Caster Mounting Type
Plate
Core Color
Gray
Tread
Standard
Non-Marking
Yes
Caster Brake Type
No Brake Included
Caster Brake Included
No
Load Capacity
610 lb
Replacement Wheel
Mfr. No. GST 200/20K
Resistant To
High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
No
Wheel Core Material
Cast Iron
Load Rating Range
Heavy Duty
Series
BSFE Series
System of Measurement
Inch
Max. Spring Deflection
1 in
Number of Mounting Holes
4
ESD Conductive
No
Tread Shape
Standard
Wheel/Tread Material
Softhane Polyurethane
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
75 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F
Maximum Compression Force
1100 lb

Description

Rigid
