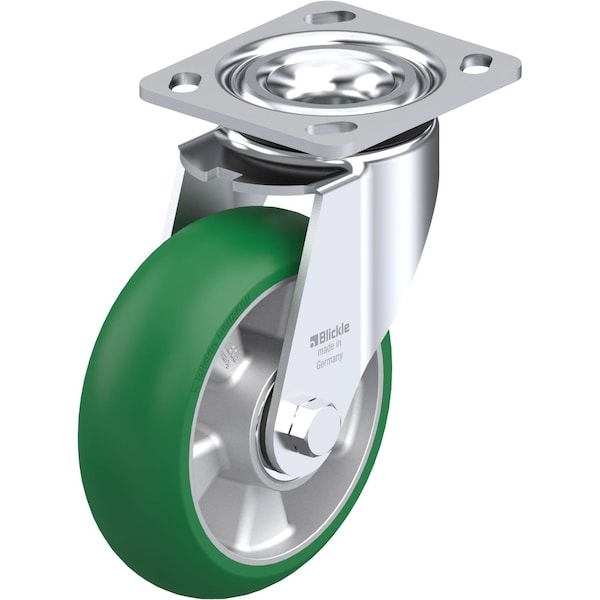

Blickle Swivel Plate Caster, PU, 6", 1100 lb., Caster Load Rating Range: Heavy-Duty LEH-ALST 150K-14-CO - main

Swivel Plate Caster, PU, 6", 1100 lb., Caster Load Rating Range: Heavy-Duty

  • Mfr # LEH-ALST 150K-14-CO

  • Zoro # G0893781

product price:  $104.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel Dia.
6in
Stem Dia.
No Stem
Caster Brake Included
No
Wheel Width
2-1/8in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LEH-ALST 150K-14-CO
Zoro #
G0893781
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
6in
Stem Dia.
No Stem
Wheel Width
2-1/8in
Overall Height
7.52in
Mounting Bolt Dia.
3/8 in
Swivel Radius
5-1/8 in
Mounting Plate Thickness
0.197 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Caster Sub-Type
Swivel
Item
Swivel Caster
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Load Rating
1,100 lb
Tread
Crowned
Caster Mounting Type
Plate
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Tread Color
Green
Caster Brake Type
No Brake Included
Non-Marking
Yes
Core Color
Silver
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Frame Finish
Zinc Plated
Includes
Extra Crowned Tread
System of Measurement
Inch
Inside Bolt Hole Spacing
3 in x 3 in
Replacement Wheel
Mfr. No. ALST 150/20K-CO
Standards
RoHS, ICWM
Caster Frame Material
Steel
Extended Lead
No
Swivel Raceway Type
Double Ball
Tread Shape
Extra Crowned
Accessories
Optional: RI-04.14 (Directional Lock)
Resistant To
High Chemical Resistance To Many Aggressive Substances
Number of Mounting Holes
4
Wheel Core Material
Aluminum
Includes Thread Guards
No
Load Capacity
1100 lb
Load Rating Range
Heavy-Duty
Series
LEH Series
ESD Conductive
No
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
75 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
