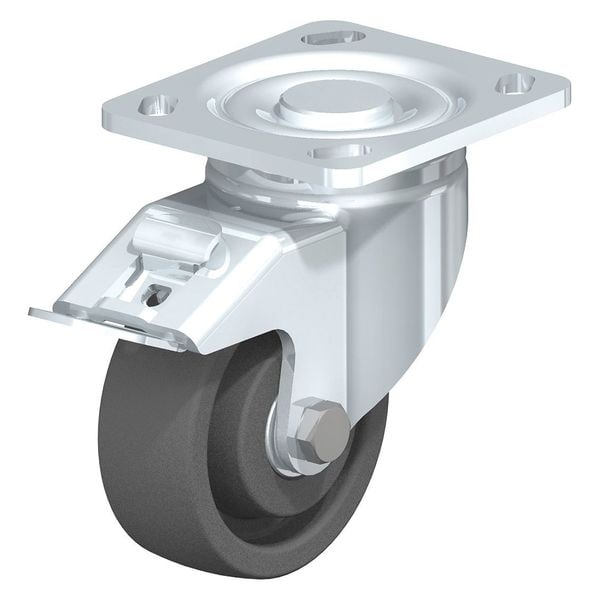

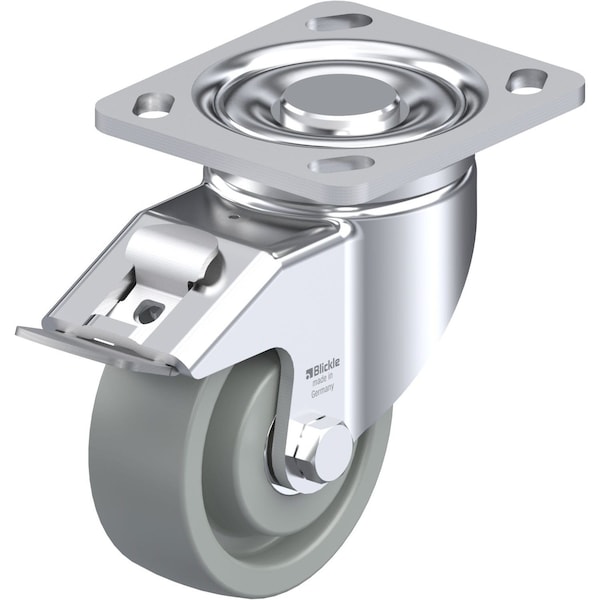

Blickle Swivel Plate Caster, Gray Nylon, 4", Brake, Caster Load Rating Range: Heavy-Duty LH-SPOG 100K-14-FI - main

Swivel Plate Caster, Gray Nylon, 4", Brake, Caster Load Rating Range: Heavy-Duty

  • Mfr # LH-SPOG 100K-14-FI

  • Zoro # G0894140

product price:  $102.99
/ea
Free Shipping & Returns

Key Features

Stem Dia.
No Stem
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Wheel Width
1-7/16in
Wheel Dia.
4in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LH-SPOG 100K-14-FI
Zoro #
G0894140
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Wheel Width
1-7/16in
Wheel Dia.
4in
Overall Height
5.51in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-3/4 in
Mounting Plate Thickness
0.236 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Item
Swivel Caster With Brake
Caster Brake Included
Yes
Caster Sub-Type
Swivel
Load Rating
1100 lb.
Application
Retail, Industrial, Commercial, Corrosion Resistance
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Replacement Wheel
Mfr. No. SPOG 100/15K
Tread
Standard
System of Measurement
Inch
Includes
Stop-Fix Total-Lock Brake
Non-Marking
Yes
Caster Brake Type
Stop Fix Brake (Total Lock)
Tread Color
Gray
Inside Bolt Hole Spacing
3 in x 3 in
Standards
RoHS, ICWM
Core Color
Gray
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Extended Lead
No
Caster Frame Material
Steel
ESD Conductive
No
Wheel Core Material
Nylon
Accessories
Optional: RI-04.14 (Directional Lock)
Load Rating Range
Heavy-Duty
Load Capacity
1100 lb
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Tread Shape
Standard
Series
LH Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel/Tread Material
Nylon
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
70 Shore D
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel With Brake
