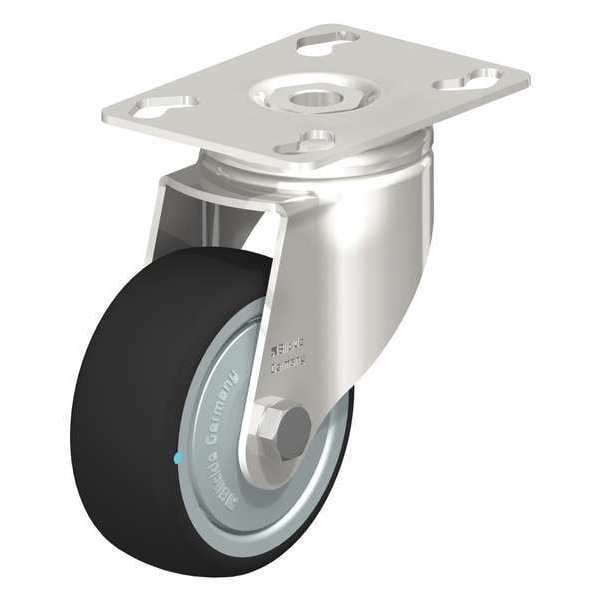

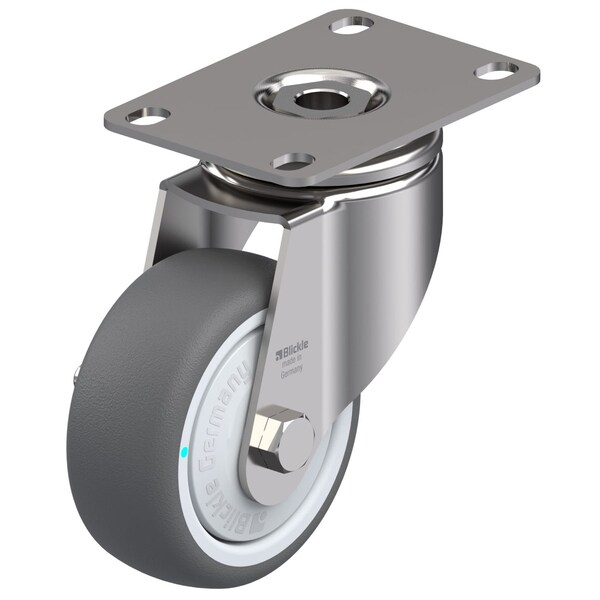

Blickle Swivel Plate Caster, PU, 3-1/8", 220 lb. LKPXA-PATH 80KFD-12 - main

Swivel Plate Caster, PU, 3-1/8", 220 lb.

  • Mfr # LKPXA-PATH 80KFD-12

  • Zoro # G0889362

product price:  $45.69
/ea

Key Features

Wheel Dia.
3-1/8in
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Wheel Width
1-1/4in
Overall Height
4.37in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LKPXA-PATH 80KFD-12
Zoro #
G0889362
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3-1/8in
Wheel Width
1-1/4in
Overall Height
4.37in
Stem Dia.
No Stem
Mounting Bolt Dia.
5/16 in
Swivel Radius
3-1/8 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.089 in

Details

Caster Brake Included
No
Item
Swivel Caster
Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Caster Sub-Type
Swivel
Load Rating
220 lb
Caster Mounting Type
Plate
Frame Finish
Stainless Steel
Caster Brake Type
No Brake Included
Tread Color
Dark Gray
Non-Marking
Yes
Standards
RoHS, ICWM, NSF
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Replacement Wheel
Mfr. No. PATH 80/8KD-FK
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Core Color
Gray
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Tread
Standard
System of Measurement
Inch
Caster Frame Material
Stainless Steel
Extended Lead
No
Number of Mounting Holes
4
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Load Capacity
265 lb
Series
LKPXA Series
Swivel Raceway Type
Double Ball
ESD Conductive
No
Includes Thread Guards
Yes
Tread Shape
Standard
Wheel Core Material
Nylon
Load Rating Range
Light-Duty
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Wheel Hardness Rating
94 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
