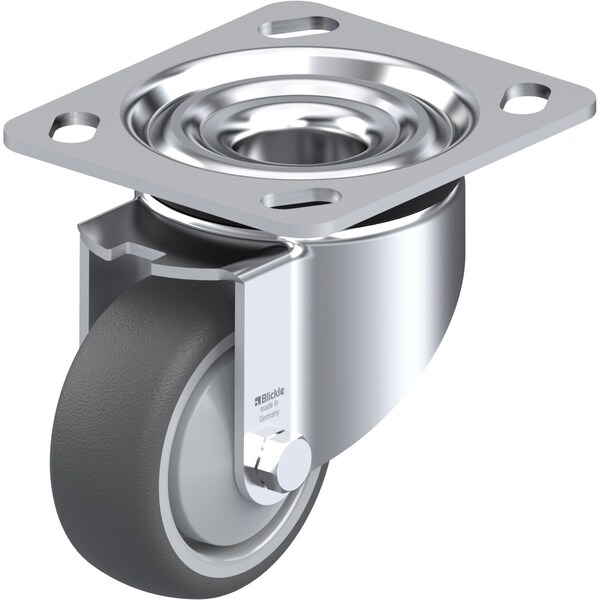

Blickle Swivel Plate Caster, PU, 3-1/8", 330 lb. LK-PATH 80KF-14 - main

Swivel Plate Caster, PU, 3-1/8", 330 lb.

  • Mfr # LK-PATH 80KF-14

  • Zoro # G0891970

product price:  $30.95
/ea

Key Features

Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Load Rating
330 lb.
Overall Height
4.33in
Wheel Width
1-1/4in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LK-PATH 80KF-14
Zoro #
G0891970
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
4.33in
Wheel Width
1-1/4in
Stem Dia.
No Stem
Wheel Dia.
3-1/8in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-1/8 in
Mounting Plate Thickness
0.138 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Load Rating
330 lb.
Item
Swivel Caster
Caster Sub-Type
Swivel
Number of Wheels
1
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
System of Measurement
Inch
Tread
Standard
Core Color
Gray
Tread Color
Dark Gray
Caster Brake Type
No Brake Included
Inside Bolt Hole Spacing
3 in x 3 in
Caster Mounting Type
Plate
Non-Marking
Yes
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. PATH 80/8-46K
Standards
RoHS, ICWM
Extended Lead
No
Caster Frame Material
Steel
Load Rating Range
Medium Duty
ESD Conductive
No
Swivel Raceway Type
Double Ball
Series
LK Series
Number of Mounting Holes
4
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Wheel Core Material
Nylon
Includes Thread Guards
Yes
Load Capacity
330 lb
Tread Shape
Standard
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
94 Shore A
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Plate Caster
