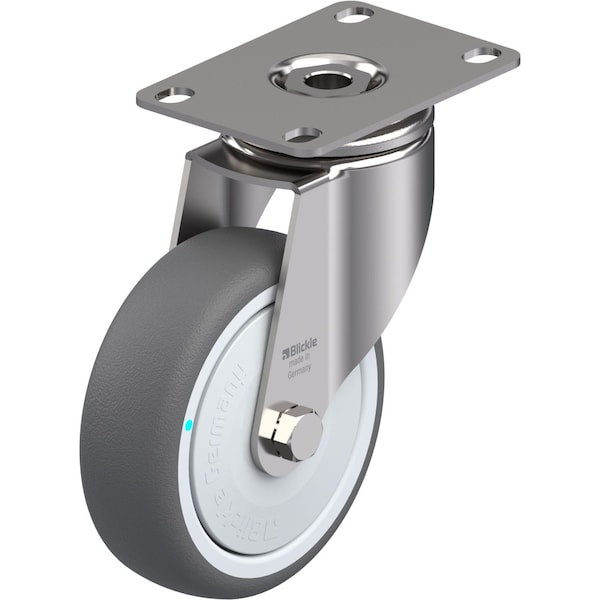

Blickle Swivel Plate Caster, PU, 4", 240 lb., Caster Load Rating Range: Light-Duty LKPXA-PATH 101KFD-12 - main

Swivel Plate Caster, PU, 4", 240 lb., Caster Load Rating Range: Light-Duty

  • Mfr # LKPXA-PATH 101KFD-12

  • Zoro # G0890467

product price:  $48.39
/ea

Key Features

Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Overall Height
5-23/64in
Number of Wheels
1
Load Rating
240 lb.
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LKPXA-PATH 101KFD-12
Zoro #
G0890467
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
5-23/64in
Wheel Width
1-1/4in
Wheel Dia.
4in
Stem Dia.
No Stem
Mounting Bolt Dia.
5/16 in
Swivel Radius
3-9/16 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.089 in

Details

Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Number of Wheels
1
Load Rating
240 lb.
Item
Swivel Caster
Caster Brake Included
No
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Non-Marking
Yes
Frame Finish
Stainless Steel
Tread
Standard
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Tread Color
Dark Gray
Standards
RoHS, ICWM, NSF
Replacement Wheel
Mfr. No. PATH 101/8KD-FK
System of Measurement
Inch
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Core Color
Gray
Caster Frame Material
Stainless Steel
Extended Lead
No
Series
LKPXA Series
Load Rating Range
Light-Duty
Tread Shape
Standard
Load Capacity
265 lb
ESD Conductive
No
Includes Thread Guards
Yes
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Wheel Core Material
Nylon
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
94 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
