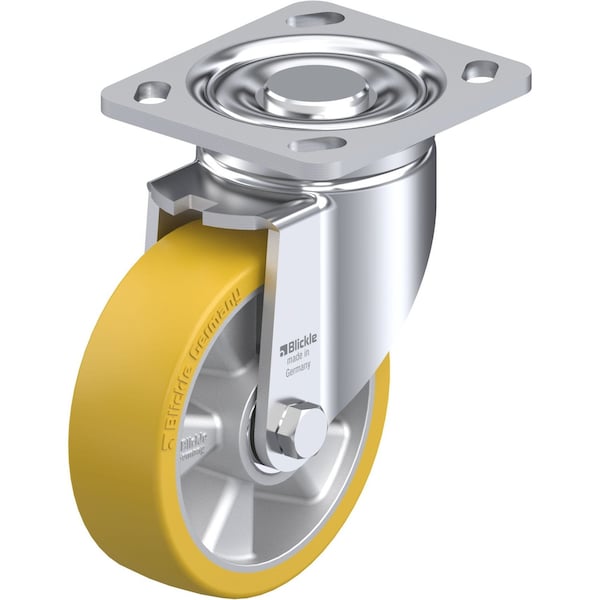

Blickle Swivel Plate Caster, PU, 5", 770 lb. LH-ALTH 125K-14 - main

Swivel Plate Caster, PU, 5", 770 lb.

  • Mfr # LH-ALTH 125K-14

  • Zoro # G0894813

product price:  $92.75
/ea

Key Features

Wheel Dia.
5in
Caster Brake Included
No
Caster Sub-Type
Swivel
Stem Dia.
No Stem
Load Rating
770 lb
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LH-ALTH 125K-14
Zoro #
G0894813
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5in
Stem Dia.
No Stem
Overall Height
6-1/2in
Wheel Width
1-9/16in
Mounting Bolt Dia.
3/8 in
Swivel Radius
4-1/4 in
Mounting Plate Thickness
0.236 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Item
Swivel Caster
Caster Brake Included
No
Caster Sub-Type
Swivel
Load Rating
770 lb
Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Frame Finish
Zinc Plated
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Core Color
Silver
Inside Bolt Hole Spacing
3 in x 3 in
Caster Mounting Type
Plate
System of Measurement
Inch
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Standards
RoHS, ICWM
Tread
Standard
Tread Color
Light Brown
Non-Marking
Yes
Caster Brake Type
No Brake Included
Replacement Wheel
Mfr. No. ALTH 125/15K
Caster Frame Material
Steel
Extended Lead
No
ESD Conductive
No
Load Rating Range
Heavy-Duty
Load Capacity
770 lb
Includes Thread Guards
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: RI-04.14 (Directional Lock)
Tread Shape
Standard
Series
LH Series
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Wheel Core Material
Aluminum
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
92 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
