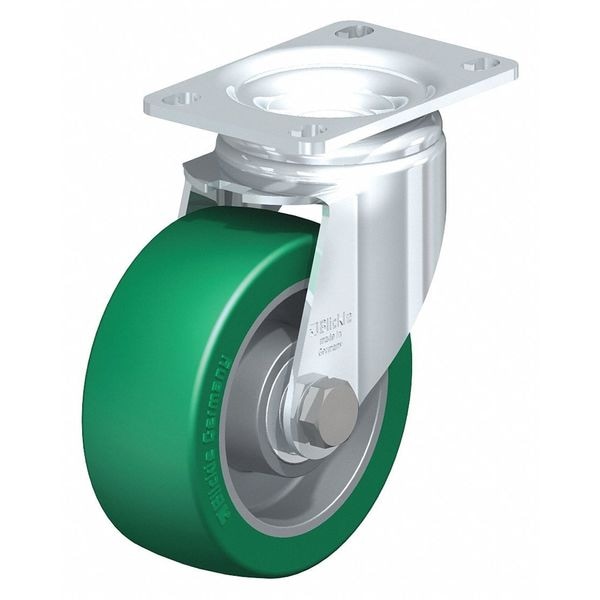

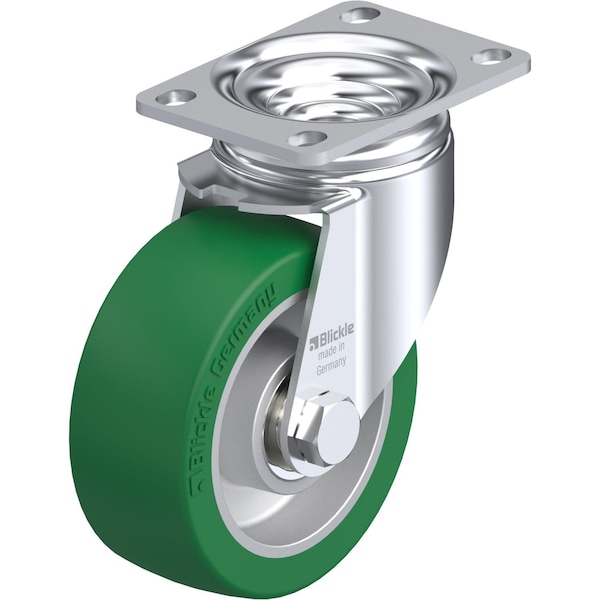

Blickle Swivel Plate Caster, PU, 4", 400 lb. L-ALST 100K-12 - main

Swivel Plate Caster, PU, 4", 400 lb.

  • Mfr # L-ALST 100K-12

  • Zoro # G0890893

product price:  $56.69
/ea

Key Features

Caster Sub-Type
Swivel
Stem Dia.
No Stem
Load Rating
400 lb.
Number of Wheels
1
Wheel Width
1-9/16in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-ALST 100K-12
Zoro #
G0890893
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Wheel Width
1-9/16in
Wheel Dia.
4in
Overall Height
5.12in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3-7/16 in
Mounting Plate Thickness
0.118 in
Mounting Plate Size
2-1/2 in x 3-5/8 in

Details

Caster Sub-Type
Swivel
Load Rating
400 lb.
Number of Wheels
1
Item
Swivel Caster
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Tread
Standard
Tread Color
Green
Non-Marking
Yes
Standards
RoHS, ICWM
Frame Finish
Zinc Plated
Core Color
Silver
Replacement Wheel
Mfr. No. ALST 100/15K
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
System of Measurement
Inch
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Extended Lead
No
Caster Frame Material
Steel
Tread Shape
Standard
Number of Mounting Holes
4
Swivel Raceway Type
Double Ball
Wheel Core Material
Aluminum
ESD Conductive
No
Load Rating Range
Heavy-Duty
Includes Thread Guards
No
Load Capacity
400 lb
Series
L Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: RI-03.12 (Directional Lock)
Wheel Hardness Rating
75 Shore A
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
