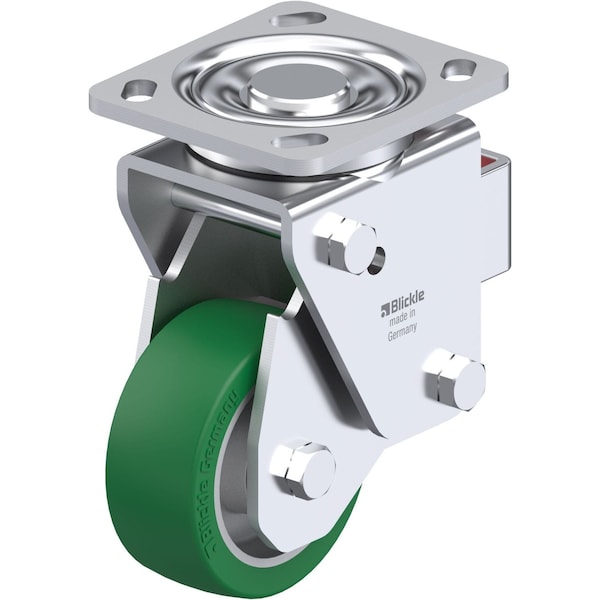

Blickle Swivel Plate Caster, PU, 4", 660 lb., Overall Height: 6-7/8" LHF-ALST 100K-14 - main

Swivel Plate Caster, PU, 4", 660 lb., Overall Height: 6-7/8"

  • Mfr # LHF-ALST 100K-14

  • Zoro # G0895741

product price:  $219.99
/ea
Free Shipping & Returns

Key Features

Caster Stem Type
No Stem/Plate Included
Stem Dia.
No Stem
Wheel Dia.
4in
Number of Wheels
1
Caster Sub-Type
Swivel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LHF-ALST 100K-14
Zoro #
G0895741
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Wheel Dia.
4in
Overall Height
6-7/8in
Wheel Width
1-9/16in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-1/4 in
Mounting Plate Thickness
0.236 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Caster Sub-Type
Swivel
Load Rating
660 lb
Item
Swivel Caster
Caster Brake Included
No
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Replacement Wheel
Mfr. No. ALST 100/15K
Tread
Standard
Non-Marking
Yes
Includes
Steel Spring Shock Absorbing
Caster Brake Type
No Brake Included
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Tread Color
Green
Inside Bolt Hole Spacing
3 in x 3 in
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Core Color
Silver
Standards
RoHS, ICWM
System of Measurement
Inch
Extended Lead
No
Caster Frame Material
Steel
Series
LHF Series
ESD Conductive
No
Includes Thread Guards
No
Tread Shape
Standard
Swivel Raceway Type
Double Ball
Load Rating Range
Heavy-Duty
Max. Spring Deflection
3/4 in
Number of Mounting Holes
4
Load Capacity
260 lb
Wheel Core Material
Aluminum
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
75 Shore A
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Maximum Compression Force
440 lb
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
