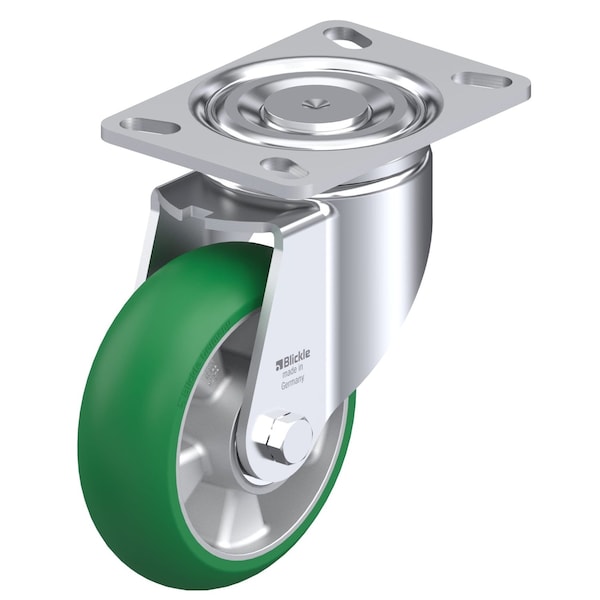

Blickle Swivel Plate Caster, PU, 6", 1100 lb. LH-ALST 150K-16-CO - main

Swivel Plate Caster, PU, 6", 1100 lb.

  • Mfr # LH-ALST 150K-16-CO

  • Zoro # G0895023

product price:  $142.99
/ea
Free Shipping & Returns

Key Features

Stem Dia.
No Stem
Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Load Rating
1100 lb.
Caster Sub-Type
Swivel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-ALST 150K-16-CO
Zoro #
G0895023
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Overall Height
7.76in
Wheel Width
2in
Wheel Dia.
6in
Mounting Bolt Dia.
1/2 in
Swivel Radius
5-9/16 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in

Details

Caster Stem Type
No Stem/Plate Included
Item
Swivel Caster
Number of Wheels
1
Load Rating
1100 lb.
Caster Sub-Type
Swivel
Caster Brake Included
No
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Mounting Type
Plate
Includes
Extra Crowned Tread
Standards
RoHS, ICWM
System of Measurement
Inch
Tread Color
Green
Caster Brake Type
No Brake Included
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Frame Finish
Zinc Plated
Core Color
Silver
Non-Marking
Yes
Tread
Crowned
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Replacement Wheel
Mfr. No. ALST 150/20K-CO
Extended Lead
No
Caster Frame Material
Steel
Wheel Core Material
Aluminum
Swivel Raceway Type
Double Ball
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Shape
Extra Crowned
Series
LH Series
Load Rating Range
Heavy-Duty
Load Capacity
1100 lb
Accessories
Optional: RI-05.16 (Directional Lock)
Number of Mounting Holes
4
ESD Conductive
No
Includes Thread Guards
No
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
75 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
