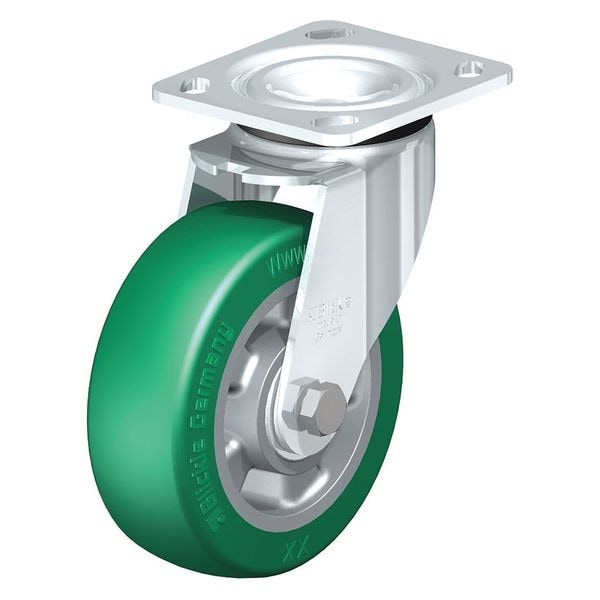

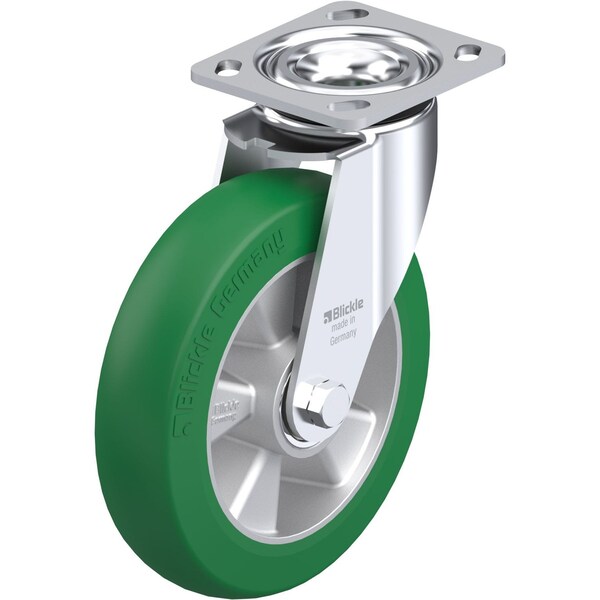

Blickle Swivel Plate Caster, PU, 8", 1250 lb. LEH-ALST 200K-14-CO - main

Swivel Plate Caster, PU, 8", 1250 lb.

  • Mfr # LEH-ALST 200K-14-CO

  • Zoro # G0893757

product price:  $128.99
/ea
Free Shipping & Returns

Key Features

Wheel Width
2in
Stem Dia.
No Stem
Number of Wheels
1
Overall Height
9.45in
Caster Sub-Type
Swivel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LEH-ALST 200K-14-CO
Zoro #
G0893757
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2in
Stem Dia.
No Stem
Overall Height
9.45in
Wheel Dia.
8in
Mounting Bolt Dia.
3/8 in
Swivel Radius
6-3/8 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.197 in

Details

Number of Wheels
1
Caster Sub-Type
Swivel
Item
Swivel Caster
Caster Brake Included
No
Load Rating
1,250 lb
Caster Stem Type
No Stem/Plate Included
Replacement Wheel
Mfr. No. ALST 200/20K-CO
Core Color
Silver
Standards
RoHS, ICWM
Tread
Crowned
Non-Marking
Yes
System of Measurement
Inch
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Tread Color
Green
Caster Brake Type
No Brake Included
Frame Finish
Zinc Plated
Includes
Extra Crowned Tread
Inside Bolt Hole Spacing
3 in x 3 in
Caster Mounting Type
Plate
Caster Frame Material
Steel
Extended Lead
No
Accessories
Optional: RI-04.14 (Directional Lock)
Includes Thread Guards
No
Tread Shape
Extra Crowned
Series
LEH Series
Load Rating Range
Heavy-Duty
Wheel Core Material
Aluminum
Load Capacity
1250 lb
Swivel Raceway Type
Double Ball
Resistant To
High Chemical Resistance To Many Aggressive Substances
Number of Mounting Holes
4
ESD Conductive
No
Wheel Hardness Rating
75 Shore A
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Plate Caster
