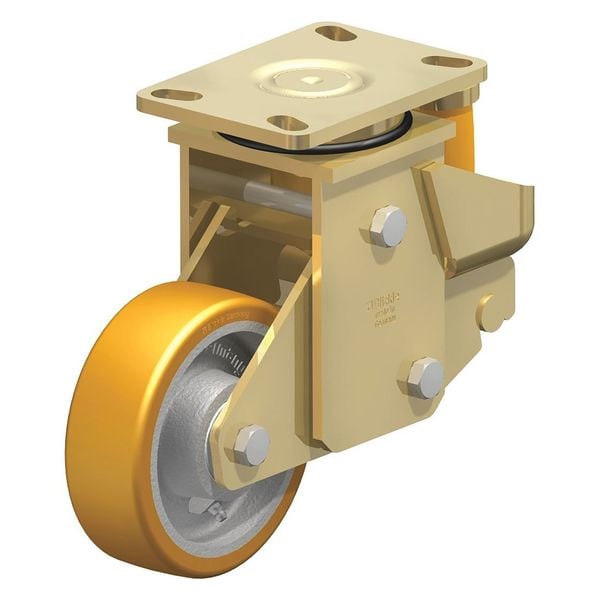

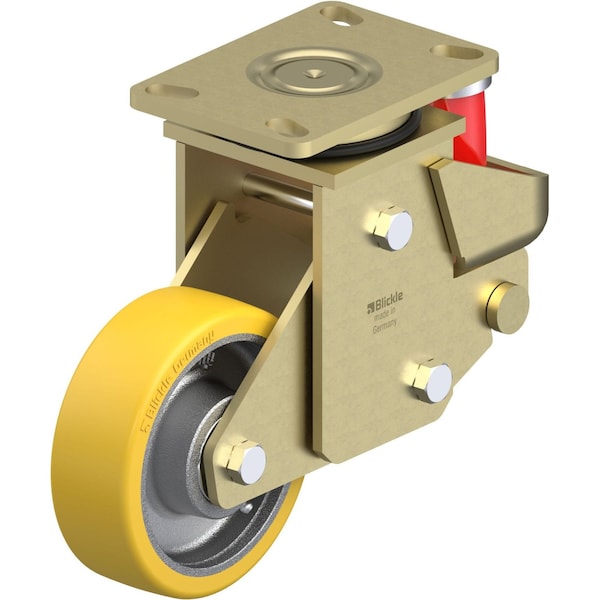

Blickle Swivel Plate Caster, PU, 6", 1760 lb. LSFE-GTH 150K-16 - main

Swivel Plate Caster, PU, 6", 1760 lb.

  • Mfr # LSFE-GTH 150K-16

  • Zoro # G0895909

product price:  $369.99
/ea
Free Shipping & Returns

Key Features

Wheel Dia.
6in
Overall Height
9.45in
Number of Wheels
1
Stem Dia.
No Stem
Caster Sub-Type
Swivel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LSFE-GTH 150K-16
Zoro #
G0895909
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
6in
Overall Height
9.45in
Stem Dia.
No Stem
Wheel Width
2in
Mounting Bolt Dia.
1/2 in
Swivel Radius
7 in
Mounting Plate Thickness
0.315 in
Mounting Plate Size
4-1/2 in x 6-1/4 in

Details

Item
Swivel Caster
Number of Wheels
1
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Load Rating
1760 lb.
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Replacement Wheel
Mfr. No. GTH 150/20K
Tread Color
Light Brown
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Tread
Standard
System of Measurement
Inch
Core Color
Gray
Caster Brake Type
No Brake Included
Non-Marking
Yes
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards
RoHS, ICWM
Frame Finish
Zinc Plated, Yellow Passivated
Caster Mounting Type
Plate
Caster Frame Material
Steel
Extended Lead
No
Tread Shape
Standard
Wheel Core Material
Cast Iron
Number of Mounting Holes
4
Max. Spring Deflection
1 in
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Load Rating Range
Heavy-Duty
Series
LSFE Series
Load Capacity
610 lb
Includes Thread Guards
No
Wheel Hardness Rating
92 Shore A
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Cast Iron/Polyurethane Elastomer
Maximum Compression Force
1100 lb
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
