Shop BLICKLE

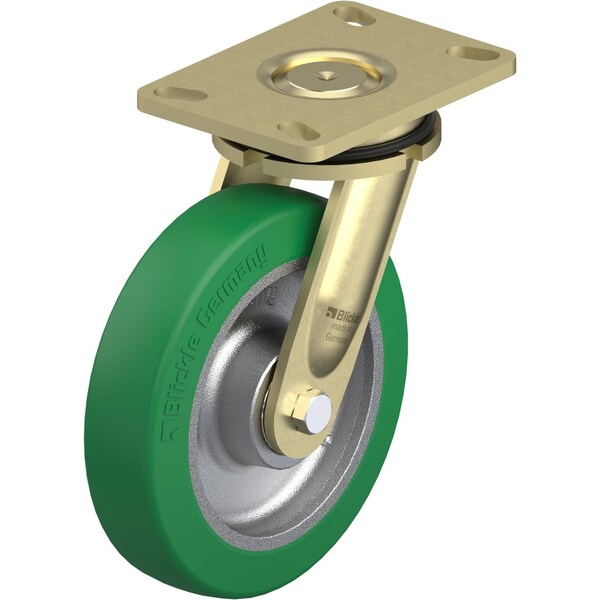

Swivel Plate Caster, PU, 8", 1760 lb., Caster Wheel/Tread Material: Cast Iron/Polyurethane Elastomer

  • Mfr # LS-GST 200K-16

  • Zoro # G0895577

product price:
$
262.99
/ea
Free Shipping & Returns

Key Features

Wheel Width
2in
Overall Height
9.65in
Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Load Rating
1,760 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LS-GST 200K-16
Zoro #
G0895577
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2in
Overall Height
9.65in
Stem Dia.
No Stem
Wheel Dia.
8in
Mounting Bolt Dia.
1/2 in
Swivel Radius
6-3/8 in
Mounting Plate Thickness
0.315 in
Mounting Plate Size
4-1/2 in x 6-1/4 in

Details

Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Item
Swivel
Load Rating
1,760 lb
Caster Brake Included
No
Caster Sub-Type
Swivel
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Replacement Wheel
Mfr. No. GST 200/20K
Standards
RoHS, ICWM
Caster Mounting Type
Plate
Core Color
Gray
Tread
Standard
System of Measurement
Inch
Frame Finish
Zinc Plated, Yellow Passivated
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Tread Color
Green
Non-Marking
Yes
Caster Brake Type
No Brake Included
Extended Lead
No
Caster Frame Material
Steel
Resistant To
High Chemical Resistance To Many Aggressive Substances
Number of Mounting Holes
4
Tread Shape
Standard
Accessories
Optional: RI-LS-16 (Directional Lock)
Includes Thread Guards
No
Load Capacity
1760 lb
Load Rating Range
Heavy-Duty
ESD Conductive
No
Series
LS Series
Wheel Core Material
Cast Iron
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Wheel/Tread Material
Cast Iron/Polyurethane Elastomer
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
75 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
