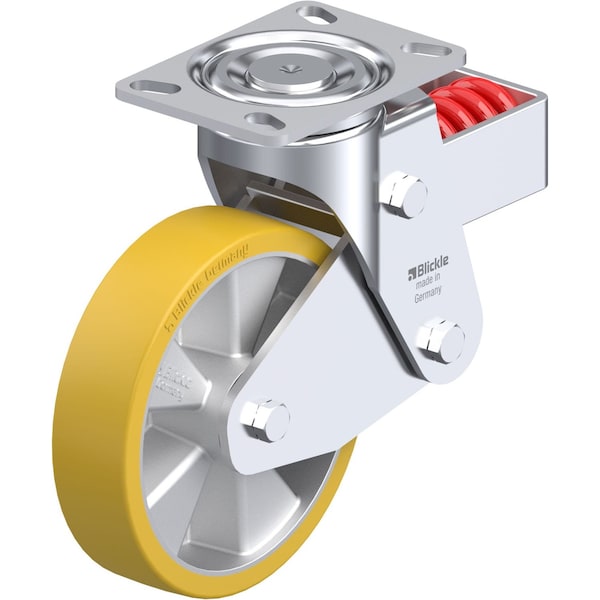

Blickle Swivel Plate Caster, PU, 8", 1750 lb. LHF-ALTH 200K-16 - main

Swivel Plate Caster, PU, 8", 1750 lb.

  • Mfr # LHF-ALTH 200K-16

  • Zoro # G0895787

product price:  $316.99
/ea
Free Shipping & Returns

Key Features

Wheel Width
2in
Caster Sub-Type
Swivel
Stem Dia.
No Stem
Overall Height
10.43in
Wheel Dia.
8in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LHF-ALTH 200K-16
Zoro #
G0895787
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2in
Stem Dia.
No Stem
Overall Height
10.43in
Wheel Dia.
8in
Mounting Bolt Dia.
1/2 in
Swivel Radius
6-9/16 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
Caster Brake Included
No
Load Rating
1750 lb.
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Tread
Standard
Frame Finish
Zinc Plated
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel
Mfr. No. ALTH 200/20K
Core Color
Silver
Includes
Steel Spring Shock Absorbing
Caster Mounting Type
Plate
Caster Brake Type
No Brake Included
Non-Marking
Yes
Tread Color
Light Brown
System of Measurement
Inch
Standards
RoHS, ICWM
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Frame Material
Steel
Extended Lead
No
Swivel Raceway Type
Double Ball
Load Rating Range
Heavy-Duty
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Number of Mounting Holes
4
Series
LHF Series
Includes Thread Guards
No
Tread Shape
Standard
Load Capacity
680 lb
Wheel Core Material
Aluminum
Max. Spring Deflection
1 in
Wheel Hardness Rating
92 Shore A
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Wheel Bearing Type
Precision Ball
Maximum Compression Force
1255 lb
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
