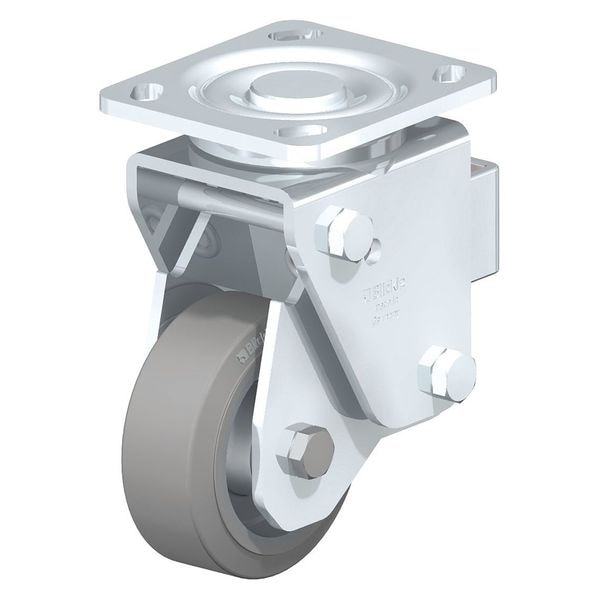

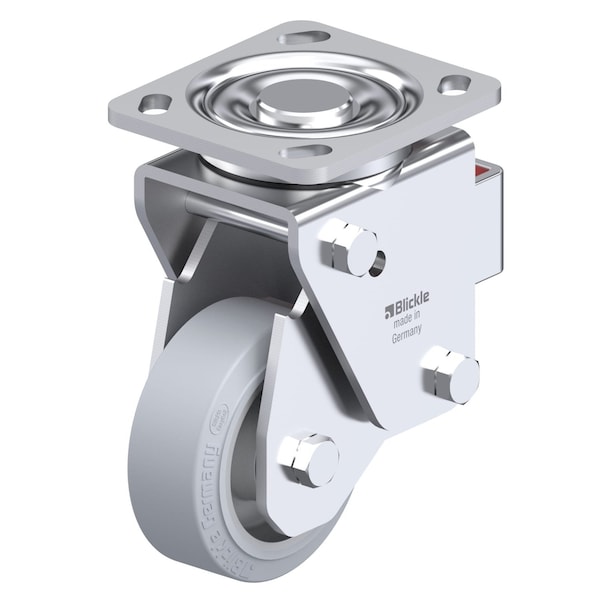

Swivel Plate Caster, Solid Rbr, 4", 440 lb., Number of Wheels: 1

  • Mfr # LHF-ALEV 100K-14-SG

  • Zoro # G0895279

product price:  $224.99
/ea
Free Shipping & Returns

Key Features

Wheel Width
1-9/16in
Number of Wheels
1
Stem Dia.
No Stem
Wheel Dia.
4in
Caster Sub-Type
Swivel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LHF-ALEV 100K-14-SG
Zoro #
G0895279
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
1-9/16in
Stem Dia.
No Stem
Wheel Dia.
4in
Overall Height
6-7/8in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-1/4 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in

Details

Item
Swivel
Number of Wheels
1
Caster Sub-Type
Swivel
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Load Rating
440 lb
Tread Color
Gray
Core Color
Silver
Tread
Standard
Application
Retail, Industrial, Commercial
Non-Marking
Yes
Replacement Wheel
Mfr. No. ALEV 100/15K-SG
Inside Bolt Hole Spacing
3 in x 3 in
System of Measurement
Inch
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Includes
Steel Spring Shock Absorbing
Frame Finish
Zinc Plated
Standards
RoHS, ICWM
Extended Lead
No
Caster Frame Material
Steel
Wheel Core Material
Aluminum
Includes Thread Guards
No
Max. Spring Deflection
3/4 in
Tread Shape
Standard
Load Capacity
260 lb
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Load Rating Range
Heavy-Duty
Series
LHF Series
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
65 Shore A
Wheel/Tread Material
Aluminum/Solid Rubber
Operating Temperature Range
-15 Degrees To 175 Degrees F
Maximum Compression Force
440 lb

Description

Swivel
