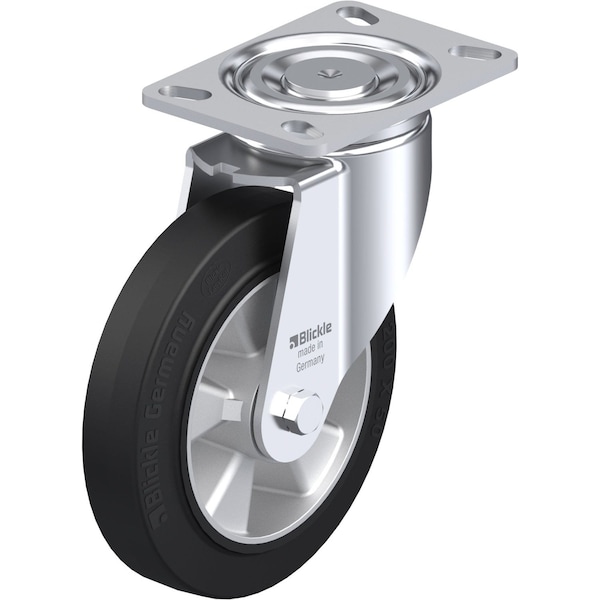

Blickle Swivel Plate Cstr, Solid Rbbr, 8", 1100 lb., Number of Wheels: 1 LH-ALEV 200K-16 - main

Swivel Plate Cstr, Solid Rbbr, 8", 1100 lb., Number of Wheels: 1

  • Mfr # LH-ALEV 200K-16

  • Zoro # G0893912

product price:  $128.99
/ea
Free Shipping & Returns

Key Features

Overall Height
9.65in
Wheel Width
2in
Number of Wheels
1
Stem Dia.
No Stem
Caster Sub-Type
Swivel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LH-ALEV 200K-16
Zoro #
G0893912
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
9.65in
Wheel Width
2in
Stem Dia.
No Stem
Wheel Dia.
8in
Mounting Bolt Dia.
1/2 in
Swivel Radius
6-3/4 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in

Details

Item
Swivel Caster
Number of Wheels
1
Caster Sub-Type
Swivel
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Load Rating
1100 lb.
Core Color
Silver
Replacement Wheel
Mfr. No. ALEV 200/20K
Tread Color
Black
System of Measurement
Inch
Tread
Standard
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Standards
RoHS, ICWM
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Brake Type
No Brake Included
Non-Marking
No
Application
Retail, Industrial, Commercial
Extended Lead
No
Caster Frame Material
Steel
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Series
LH Series
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Wheel Core Material
Aluminum
Load Capacity
1100 lb
Accessories
Optional: RI-05.16 (Directional Lock)
Tread Shape
Standard
Load Rating Range
Heavy-Duty
Number of Mounting Holes
4
Wheel Hardness Rating
65 Shore A
Wheel/Tread Material
Aluminum/Solid Rubber
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel
