  11. Swivel Solid Rubber Whl Caster, 10", Brake

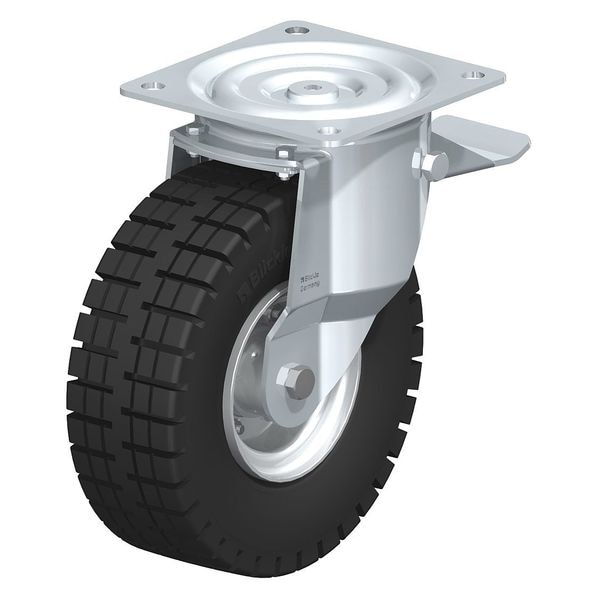

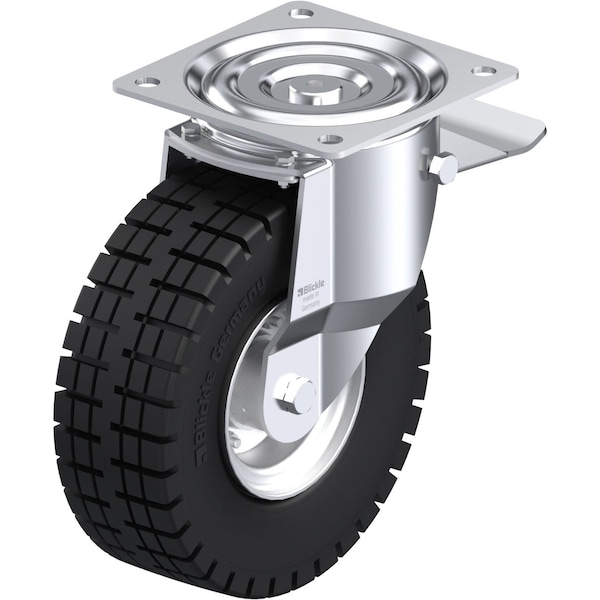

Blickle Swivel Solid Rubber Whl Caster, 10", Brake L-VLE 255K-ST - main

Swivel Solid Rubber Whl Caster, 10", Brake

  • Mfr # L-VLE 255K-ST

  • Zoro # G0896189

product price: $420.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Steel/Solid Rubber
Caster Brake Type
Stop Top Brake (Total Lock)
Wheel Dia.
9.8in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L-VLE 255K-ST
Zoro #
G0896189
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
9.8in
Wheel Width
3.346in
Mounting Plate Size
175 mm x 175 mm
Mounting Plate Thickness
4 mm
Mounting Bolt Dia.
M14
Overall Height
11.6in
Stem Dia.
No Stem
Swivel Radius
195 mm

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Steel/Solid Rubber
Caster Brake Type
Stop Top Brake (Total Lock)
Load Rating
990 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
70 Shore A
Number of Mounting Holes
4
Tread Shape
Zig-Zag
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
140 mm x 140 mm
Inside Bolt Hole Spacing
140 mm x 140 mm
Caster Brake Included
Yes
Caster Stem Type
No Stem/Plate Included
Tread
Zig-Zag
Standards
RoHS, ICWM
Frame Finish
Zinc Plated
Includes
Stop-Top Total-Lock Brake
Replacement Wheel
Mfr. No. VLE 255/20-75K
Application
Retail, Industrial, Commercial
Tread Color
Black
Extended Lead
No
Includes Thread Guards
No
ESD Conductive
No
Wheel Core Material
Pressed Steel
Series
L Series
Load Capacity
450 kg
Swivel Raceway Type
Double Ball
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Load Rating Range
Heavy-Duty
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel With Brake
