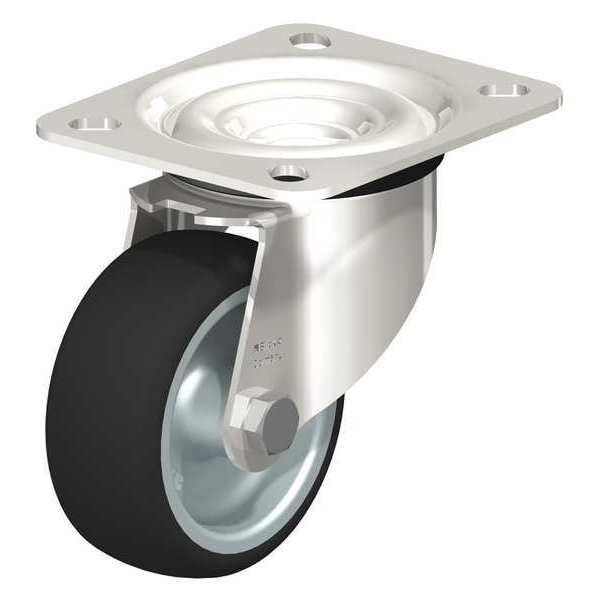

Blickle Swvl Plte Cstr, Polyurthn, 3-1/8", 330 lb. LEX-PATH 80G - main

Swvl Plte Cstr, Polyurthn, 3-1/8", 330 lb.

  • Mfr # LEX-PATH 80G

  • Zoro # G9660817

product price:  $39.69
/ea

Key Features

System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Polyurethane
Wheel Width
32 mm
Caster Mounting Type
Plate
Mounting Plate Size
85 mm x 100 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LEX-PATH 80G
Zoro #
G9660817
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
80 mm
Wheel Width
32 mm
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
2.5 mm
Mounting Bolt Dia.
M8
Overall Height
102 mm
Swivel Radius
78 mm

Details

Item
Swivel Caster
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Mounting Type
Plate
Number of Mounting Holes
4
Caster Frame Material
Stainless Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Extended Lead
No
Caster Brake Included
No
Caster Brake Type
No Brake Included
Replacement Wheel
Mfr. No. PATH 80/12G
Frame Finish
Stainless Steel
Standards
RoHS, ICWM
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Sub-Type
Swivel
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Series
LEX Series
ESD Conductive
No
Includes Thread Guards
No
Load Rating Range
Medium Duty
Load Capacity
150 kg
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Tread
Standard
Tread Color
Dark Gray
Wheel Core Material
Nylon
Wheel Bearing Type
Plain
Wheel Hardness Rating
94 Shore A
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel
