  11. Swivl Plate Cstr, White Nylon, 5", Brake

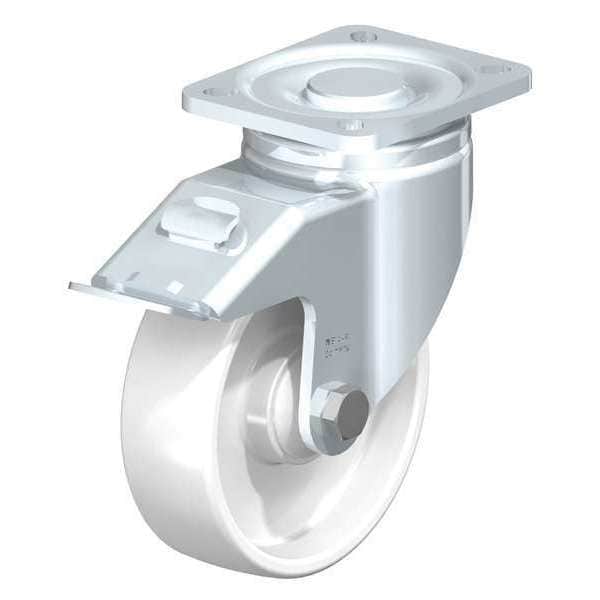

Blickle Swivl Plate Cstr, White Nylon, 5", Brake LH-PO 125KA-1-FI - main

Swivl Plate Cstr, White Nylon, 5", Brake

  • Mfr # LH-PO 125KA-1-FI

  • Zoro # G9663090

product price: $93.39
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Medium Heavy Duty Nylon
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Dia.
125 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LH-PO 125KA-1-FI
Zoro #
G9663090
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
125 mm
Wheel Width
40 mm
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
6 mm
Mounting Bolt Dia.
M8
Overall Height
165 mm
Swivel Radius
107.5 mm

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Medium Heavy Duty Nylon
Caster Brake Type
Stop Fix Brake (Total Lock)
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
White
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Includes
Stop-Fix Total-Lock Brake
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. PO 125/10K
Caster Brake Included
Yes
Application
Retail, Industrial, Commercial, Corrosion Resistance
Standards
RoHS, ICWM
Extended Lead
No
Load Capacity
300 kg
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
White
ESD Conductive
No
Accessories
Optional: RI-04.01 (Directional Lock)
Series
LH Series
Wheel Core Material
Nylon
Swivel Raceway Type
Double Ball
Load Rating Range
Heavy Duty
Includes Thread Guards
No
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel With Brake
