  11. Swvl Plate Cstr, White Nylon, 3", Brake

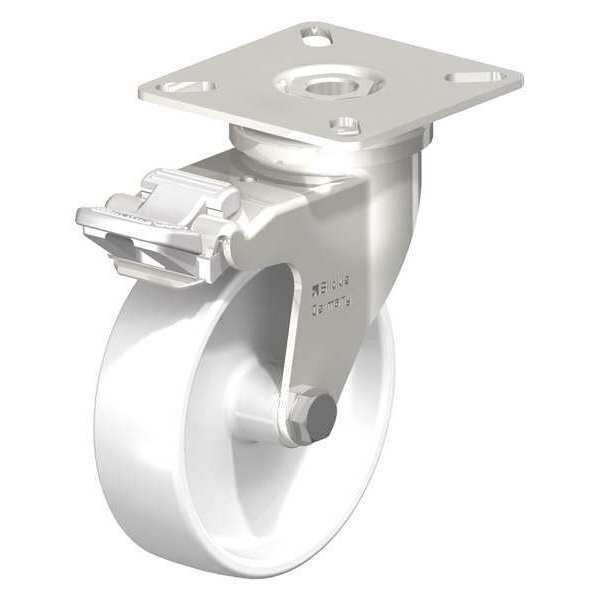

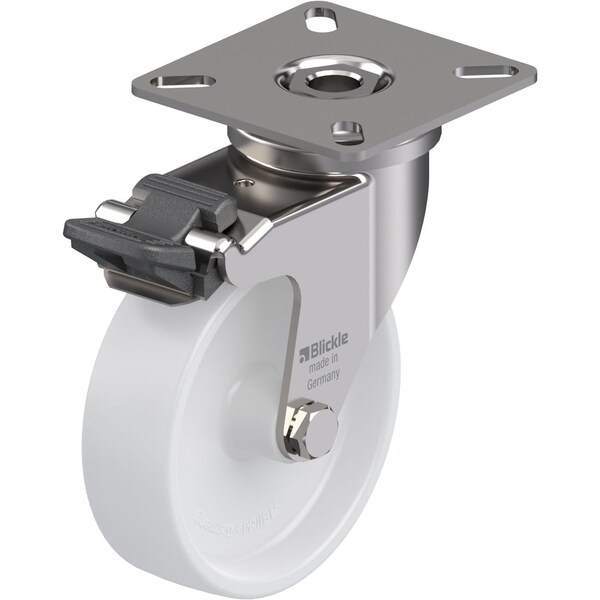

Blickle Swvl Plate Cstr, White Nylon, 3", Brake LPXA-PO 76G-FI - main

Swvl Plate Cstr, White Nylon, 3", Brake

  • Mfr # LPXA-PO 76G-FI

  • Zoro # G9659898

product price: $43.19
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Medium Heavy Duty Nylon
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Dia.
75 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LPXA-PO 76G-FI
Zoro #
G9659898
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
75 mm
Wheel Width
23 mm
Mounting Plate Size
60 mm x 60 mm
Mounting Plate Thickness
2 mm
Mounting Bolt Dia.
M6
Swivel Radius
66.5 mm
Overall Height
100 mm

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Medium Heavy Duty Nylon
Caster Brake Type
Stop Fix Brake (Total Lock)
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
White
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
48 mm x 48 mm
Inside Bolt Hole Spacing
38 mm x 38 mm
Extended Lead
No
Application
Retail, Industrial, Commercial, Corrosion Resistance
Replacement Wheel
Mfr. No. PO 76/8G
Frame Finish
Stainless Steel
Includes
Stop-Fix Total-Lock Brake
Standards
RoHS, ICWM, NSF
Caster Brake Included
Yes
Wheel Core Material
Nylon
ESD Conductive
No
Includes Thread Guards
No
Load Rating Range
Light Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
White
Series
LPXA Series
Tread
Standard
Load Capacity
75 kg
Swivel Raceway Type
Double Ball
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel With Brake
