  6. Plate Caster, 6" Wheel Dia, 150 lb.

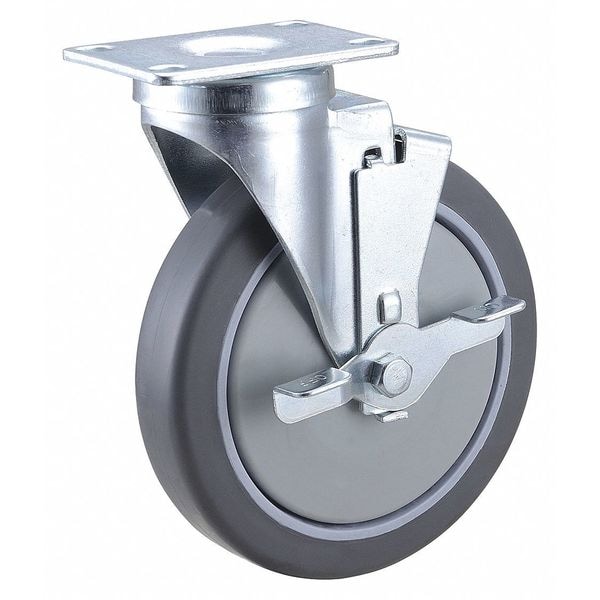

Zoro Select Plate Caster, 6" Wheel Dia, 150 lb. 406P72 - main

Plate Caster, 6" Wheel Dia, 150 lb.

  • Mfr # 406P72

  • Zoro # G5558819

product price:  $21.59
/ea

Key Features

Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Frame Finish
Zinc Plated
Standards
ANSI ICWM
Caster Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
406P72
Zoro #
G5558819
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1 1/4 in
Mounting Bolt Dia.
5/16 in
Overall Height
7-1/4in
Wheel Dia.
6 in
Mounting Height
7 5/16 in
Mounting Plate Size
2 1/2 in x 3 5/8 in
Mounting Plate Thickness
5/32in

Details

Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Frame Finish
Zinc Plated
Standards
ANSI ICWM
Caster Frame Material
Steel
Application
Food Service, Hospital Equipment, Institutional Equipment, Office Equipment, Store Fixtures, Utility Carts
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Item
Plate Caster
Caster Brake Type
Side Brake
Load Rating
150 lb
Extended Lead
No
Replacement Wheel
3ENX6
Non-Marking
Yes
Wheel Color
Gray
Core Color
Gray
Caster Temp. Range Available
Yes
Caster Brake Included
Yes
Caster Sub-Type
Swivel
Thread Guards
Yes
Number of Wheels
1
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Wheel Core Material
Polyolefin
Includes Thread Guards
Yes
Wheel/Tread Hardness Rating
Soft
Swivel Construction
Kingpin
Load Rating Range
0 to 299 lb
Wheel Bearing Type
Ball
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Wheel Hardness Rating
75 Shore A
Load Capacity - Maximum
150 lb
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 150 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
