  6. Swvl Plte Cstr, Polyurthn, 3-1/8", 165 lb.

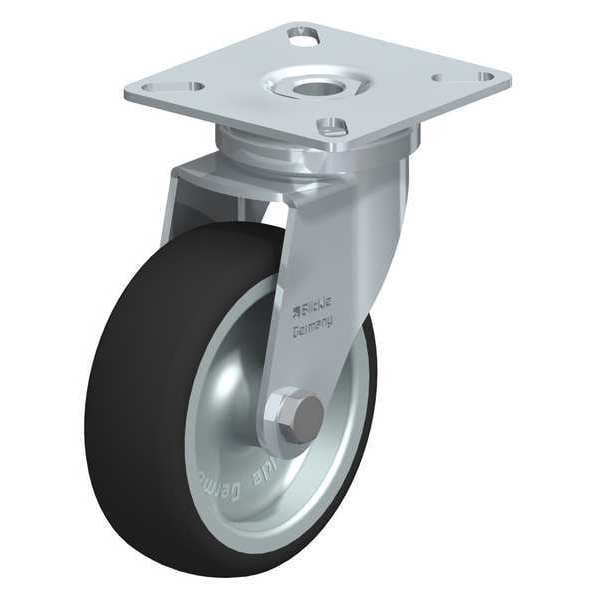

Blickle Swvl Plte Cstr, Polyurthn, 3-1/8", 165 lb. LPA-PATH 75G - main

Swvl Plte Cstr, Polyurthn, 3-1/8", 165 lb.

  • Mfr # LPA-PATH 75G

  • Zoro # G9661261

product price:  $16.69
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Thermoplastic Polyurethane
Wheel Dia.
75 mm
Wheel Width
25 mm
Caster Mounting Type
Plate
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LPA-PATH 75G
Zoro #
G9661261
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
75 mm
Wheel Width
25 mm
Mounting Plate Size
60 mm x 60 mm
Mounting Plate Thickness
2 mm
Overall Height
100 mm
Swivel Radius
66.5 mm
Mounting Bolt Dia.
M6

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel Hardness Rating
94 Shore A
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
48 mm x 48 mm
Inside Bolt Hole Spacing
38 mm x 38 mm
Standards
RoHS, ICWM, NSF
Caster Brake Type
No Brake Included
Replacement Wheel
Mfr. No. PATH 75/8G
Extended Lead
No
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated
Caster Brake Included
No
System of Measurement
Metric
Series
LPA Series
Tread Color
Dark Gray
ESD Conductive
No
Load Capacity
75 kg
Swivel Raceway Type
Double Ball
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
No
Tread
Standard
Number of Mounting Holes
4
Load Rating Range
Medium Duty
Wheel Core Material
Nylon
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel
