  11. Swvl Plte Cstr, Polyurthn, 3-1/8", 330 lb.

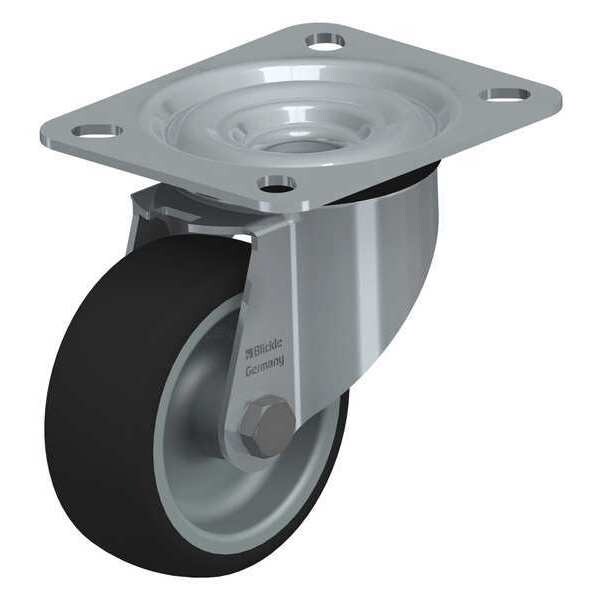

Blickle Swvl Plte Cstr, Polyurthn, 3-1/8", 330 lb. LE-PATH 80G - main

Swvl Plte Cstr, Polyurthn, 3-1/8", 330 lb.

  • Mfr # LE-PATH 80G

  • Zoro # G9661779

product price: $17.39
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
No Brake Included
Wheel Dia.
80 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LE-PATH 80G
Zoro #
G9661779
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
80 mm
Wheel Width
32 mm
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
2.5 mm
Mounting Bolt Dia.
M8
Overall Height
102 mm
Swivel Radius
78 mm

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated
Standards
RoHS, ICWM
Extended Lead
No
Caster Brake Included
No
Replacement Wheel
Mfr. No. PATH 80/12G
Accessories
Optional: RI-04.14 (Directional Lock)
Wheel Core Material
Nylon
Series
LE Series
Load Rating Range
Medium Duty
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
ESD Conductive
No
Load Capacity
150 kg
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Tread Color
Dark Gray
Tread
Standard
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel
