  11. Swvl Plte Cstr, Polyurthn, 3-1/8", Brake

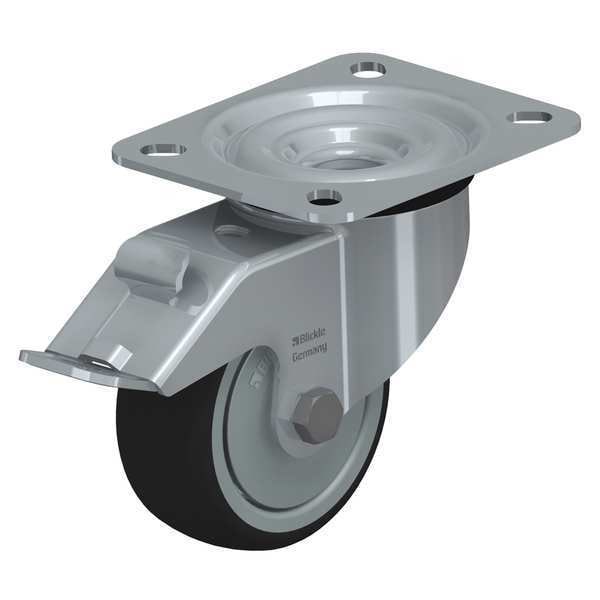

Blickle Swvl Plte Cstr, Polyurthn, 3-1/8", Brake LE-PATH 80KF-FI - main

Swvl Plte Cstr, Polyurthn, 3-1/8", Brake

  • Mfr # LE-PATH 80KF-FI

  • Zoro # G9661727

product price: $31.49
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Dia.
80 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LE-PATH 80KF-FI
Zoro #
G9661727
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
80 mm
Wheel Width
32 mm
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
2.5 mm
Mounting Bolt Dia.
M8
Swivel Radius
78 mm
Overall Height
102 mm

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
Stop Fix Brake (Total Lock)
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel
Mfr. No. PATH 80/8K-FK
Caster Brake Included
Yes
Extended Lead
No
Frame Finish
Zinc Plated
Includes
Stop-Fix Total-Lock Brake
Standards
RoHS, ICWM
Load Capacity
150 kg
Swivel Raceway Type
Double Ball
Tread Color
Dark Gray
ESD Conductive
No
Series
LE Series
Accessories
Optional: RI-04.14 (Directional Lock)
Includes Thread Guards
Yes
Load Rating Range
Medium Duty
Wheel Core Material
Nylon
Tread
Standard
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel With Brake
