  6. Swvl Plte Cstr, TPR Rubbr, 3-1/8", Brake

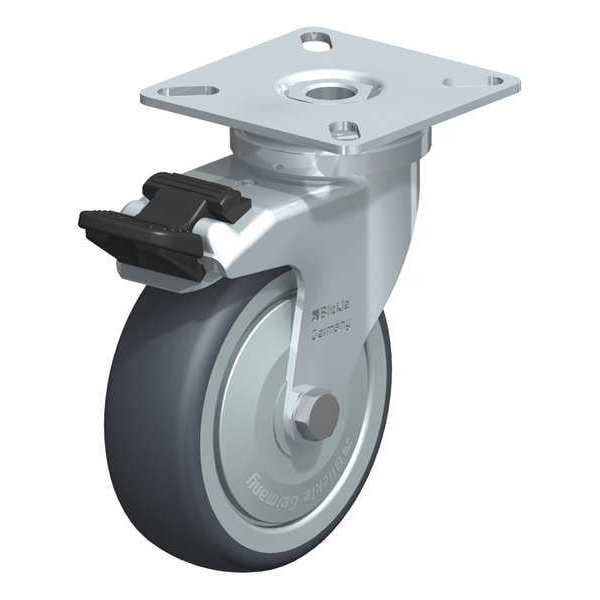

Blickle Swvl Plte Cstr, TPR Rubbr, 3-1/8", Brake LPA-TPA 75KF-FI - main

Swvl Plte Cstr, TPR Rubbr, 3-1/8", Brake

  • Mfr # LPA-TPA 75KF-FI

  • Zoro # G9661569

product price:  $15.69
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Dia.
75 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LPA-TPA 75KF-FI
Zoro #
G9661569
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
75 mm
Wheel Width
25 mm
Mounting Plate Size
60 mm x 60 mm
Mounting Plate Thickness
2 mm
Mounting Bolt Dia.
M6
Overall Height
100 mm
Swivel Radius
66.5 mm

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Stop Fix Brake (Total Lock)
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
48 mm x 48 mm
Inside Bolt Hole Spacing
38 mm x 38 mm
Standards
RoHS, ICWM, NSF
Frame Finish
Zinc Plated
Includes
Stop-Fix Total-Lock Brake
Replacement Wheel
Mfr. No. TPA 75/6K-FK
Extended Lead
No
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Included
Yes
ESD Conductive
No
Swivel Raceway Type
Double Ball
Series
LPA Series
Load Capacity
75 kg
Load Rating Range
Medium Duty
Wheel Core Material
Polypropylene
Includes Thread Guards
Yes
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Tread Color
Gray
Tread
Standard
Operating Temperature Range
-20 Degrees To 60 Degrees C

Description

Swivel With Brake
