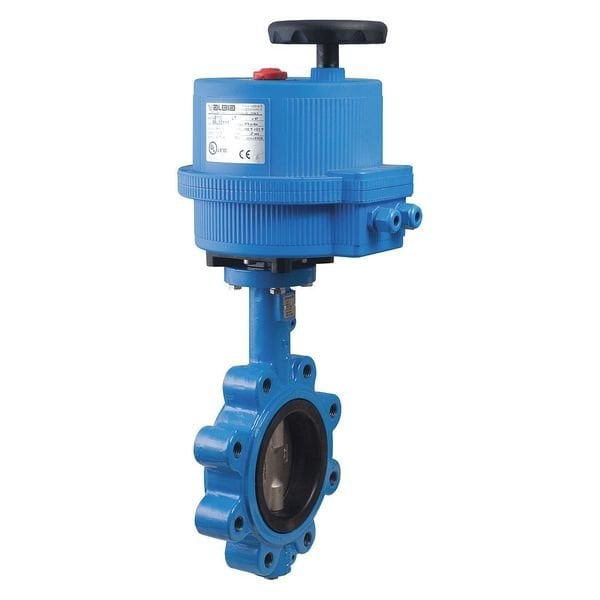

Electrically Actuated Butterfly Valve

  • Mfr # EN501S-003-10
  • Zoro # G7515098
product price:
$
1,478.99
/ea
Free Shipping & Returns

Key Features

Operating Temperature - Maximum
250 Degrees F
Nominal Valve Size
10 in
Actuator Output Shaft Material
416 Stainless Steel
Maximum Pressure - Operating
250 psi
Standards
ISO 5211, MSS SP-67, NSF, NSF/ANSI 372
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
EN501S-003-10
Zoro #
G7515098
UPC #
-
Country of Origin
Multiple
Item
Electrically Actuated Butterfly Valve
Operating Temperature - Maximum
250 Degrees F
Actuator Output Shaft Material
416 Stainless Steel
Maximum Pressure - Operating
250 psi
Standards
ISO 5211, MSS SP-67, NSF, NSF/ANSI 372
Liner Material
EPDM
Connection Type
Lug
Actuator Ambient Temperature - Maximum
131 Degrees F
Voltage
100 to 240V AC
Maximum Pressure - Steam
15 psi
3-A Standard Compliance
Not Rated
IP Rating
IP67
ANSI Flange Class
Class 150
Body Material
Ductile Iron
Vacuum Service Rating
Not Rated
Valve Series
EN501S
Disc Material
Stainless Steel
Fail Safe Position
Fail Closed
Number of Flange Bolt Holes
12
Actuator Electrical Entry
1/2 in Conduit
Operating Temperature - Minimum
-30 Degrees F
Actuator Enclosure Material
Technopolymer
Seal Material
EPDM
Valve Deactivated State
Normally Closed (NC)
Actuator Input Control Signal
Manual
Actuator Ambient Temperature - Minimum
-4 Degrees F
Disc Alignment
Concentric
Actuator Duty Cycle
75%
For Media
Air, Water
NSF Certifications for Food and Drinking Water
NSF 61
NEMA Enclosure Rating
4, 4X

Dimensions

Nominal Valve Size
10 in
Lug Diameter
10 in

Description

Electrically Actuated Butterfly Valve, Body Material Ductile Iron, Voltage 100 to 240V AC, Standards ISO 5211, MSS SP-67, NSF, NSF/ANSI 372
