Shop BONOMI

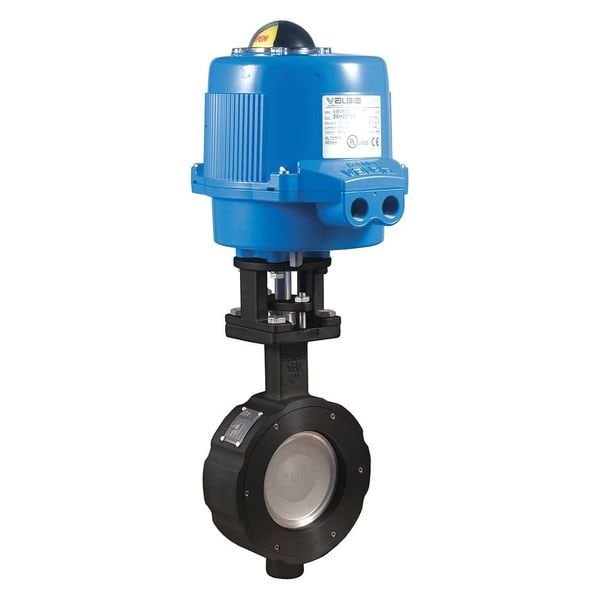

Electrically Actuated Butterfly Valve

  • Mfr # ME8100-002-5
  • Zoro # G7555725
product price:
$
1,509.99
/ea
Free Shipping & Returns

Key Features

NEMA Enclosure Rating
4
Actuator Ambient Temperature - Maximum
131 Degrees F
Fail Safe Position
Fail Closed
Actuator Duty Cycle
75%
Maximum Pressure - Steam
150 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ME8100-002-5
Zoro #
G7555725
UPC #
-
Country of Origin
Multiple
Item
Electrically Actuated Butterfly Valve
NEMA Enclosure Rating
4
Actuator Ambient Temperature - Maximum
131 Degrees F
Fail Safe Position
Fail Closed
Actuator Duty Cycle
75%
Maximum Pressure - Steam
150 psi
Connection Type
Wafer
Maximum Pressure - Operating
285 psi
IP Rating
IP67
For Media
Gas, Oil, Water
Liner Material
RPTFE
ANSI Flange Class
Class 150
Body Material
Carbon Steel
Disc Material
Stainless Steel
Actuator Electrical Entry
1/2 in Conduit
Actuator Features
Heater, Auxiliary Limit Switch, Torque Limiter
Disc Alignment
Double-Offset
Actuator Input Control Signal
Manual
Actuator Enclosure Material
Aluminum
3-A Standard Compliance
Not Rated
Actuator Ambient Temperature - Minimum
-4 Degrees F
Stem Material
17-4PH Stainless Steel
Standards
ANSI 150, CSA/UL, ISO 5211
Operating Temperature - Maximum
475 Degrees F
Vacuum Service Rating
Not Rated
Voltage
24V AC/DC
Seal Material
FKM
Valve Series
ME8100
Valve Deactivated State
Normally Closed (NC)
Operating Temperature - Minimum
-20 Degrees F

Dimensions

Nominal Valve Size
5 in

Description

Electrically Actuated Butterfly Valve, Body Material Carbon Steel, Voltage 24V AC/DC, Standards ANSI 150, CSA/UL, ISO 5211
