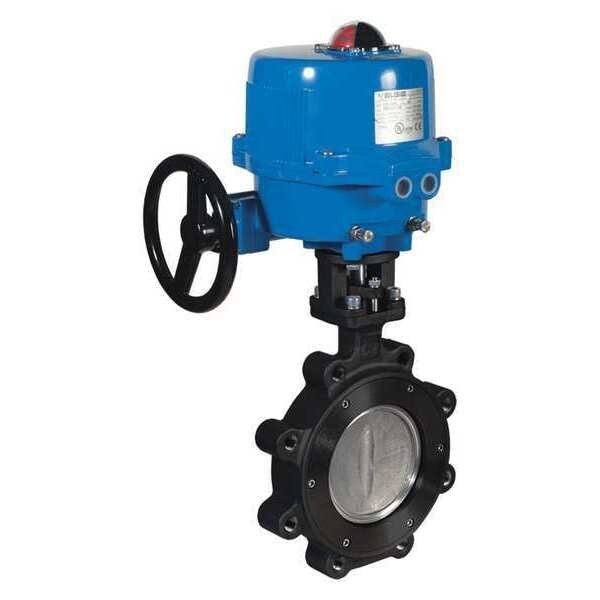

Electrically Actuated Butterfly Valve

  • Mfr # ME8101-002-2
  • Zoro # G7555829
product price:
$
938.99
/ea
Free Shipping & Returns

Key Features

Seal Material
FKM
Actuator Duty Cycle
75%
Valve Deactivated State
Normally Closed (NC)
Stem Material
17-4PH Stainless Steel
Standards
CSA/UL, ISO 5211
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ME8101-002-2
Zoro #
G7555829
UPC #
-
Country of Origin
Multiple
Item
Electrically Actuated Butterfly Valve
Seal Material
FKM
Actuator Duty Cycle
75%
Valve Deactivated State
Normally Closed (NC)
Stem Material
17-4PH Stainless Steel
Standards
CSA/UL, ISO 5211
For Media
Gas, Oil, Steam, Water
Maximum Pressure - Steam
150 psi
Actuator Features
Heater, Auxiliary Limit Switch, Torque Limiter
NEMA Enclosure Rating
4
Actuator Ambient Temperature - Minimum
-4 Degrees F
Voltage
24V AC/DC
3-A Standard Compliance
Not Rated
Operating Temperature - Minimum
-20 Degrees F
Liner Material
RPTFE
Maximum Pressure - Operating
285 psi
Disc Material
Stainless Steel
Actuator Electrical Entry
1/2 in Conduit
Body Material
Carbon Steel
IP Rating
IP67
Operating Temperature - Maximum
475 Degrees F
Number of Flange Bolt Holes
4
Fail Safe Position
Fail Closed
Actuator Ambient Temperature - Maximum
131 Degrees F
ANSI Flange Class
Class 150
Actuator Enclosure Material
Aluminum
Valve Series
ME8101
Actuator Input Control Signal
Manual
Connection Type
Lug
Vacuum Service Rating
Not Rated
Disc Alignment
Double-Offset

Dimensions

Nominal Valve Size
2 in
Lug Diameter
2 in

Description

Electrically Actuated Butterfly Valve, Body Material Carbon Steel, Voltage 24V AC/DC, Standards CSA/UL, ISO 5211
