Brad Harrison

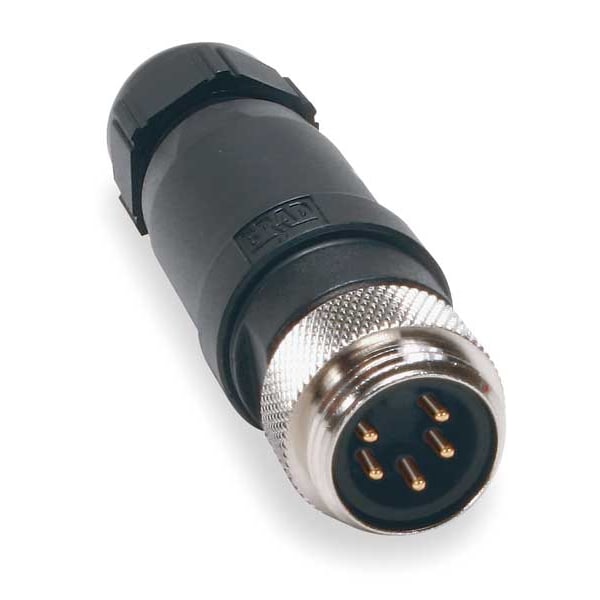

External Thread Connector, 5, Male, 16 AWG

original price: $37.95
5% off
new price: $35.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Number of Pins 5
  • Plug or Connector Type Male
  • Plug End Straight
  • Max. Voltage 600VAC/DC
  • Max. Current 8 A
See all product information

Product Information

Dimensions

Wire Size 24 AWG to 15 AWG
Face Dia. 0.55 in
Cable Diameter 5.08-11.43mm (.200-.450")
Wire Size AWG 15 to 24
Connector Mating Size 7/8-16 UN

Details

Item Field Attachable Connector
Number of Pins 5
Plug or Connector Type Male
Plug End Straight
Max. Voltage 600VAC/DC
Max. Current 8 A
Threads 7/8-16
Color Black
Body Material Polyamide
Keyway Single
NEMA Rating 6P
Standards IEC, UL
Max. Amps 8A
Features Single Keyway
Temp. Range -40 Degrees to 176 Degrees F
IP Rating IP67, IP68
Material - Connector Body Nylon
Voltage - Maximum 600V AC/DC
Poles 5
Material - Coupling Nut Nickel-plated Brass
Current - Maximum per Contact 8.0A
Gender Male
CSA LR6837
Orientation Straight
Coupling Type External Thread
Temperature Range - Operating -20°C to +80°C
Material - Plating Mating Gold
Application/Rating - IEC IP 67
Connector Type Male Ctr
Material Nylon Body, Nickel-plated Brass Nut
Cable Range 5.08-11.4 mm (0.20-0.45 in.) OD

Description

External Thread Connector, Number of Pins 5, Plug or Connector Type Male, Straight Plug End, Max. Voltage 600V AC/DC, Max. Current 8 A, Wire Size 24 to 15 AWG, Threads 7/8-16, Face Dia. 0.55 in, Keyway Single, Body Material Polyamide, Color Black, NEMA Rating 6P, Standards IEC, UL
