Shop BRENNAN INDUSTRIES

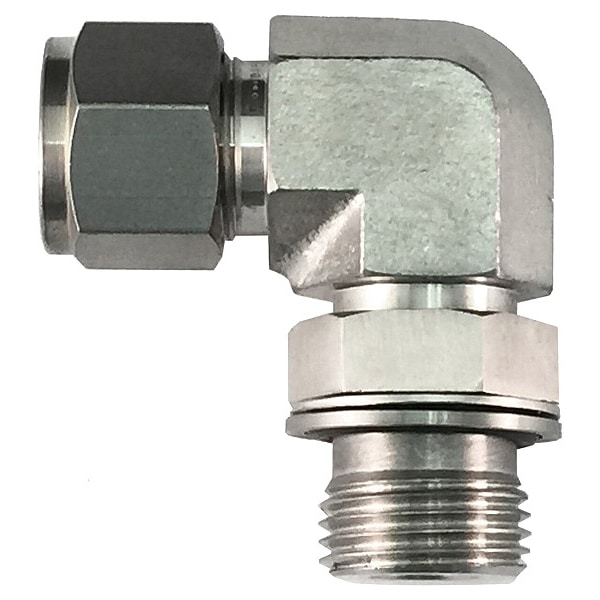

Elbow, SS, Comp. 1/2 in, MBSPP 1/2 in

  • Mfr # N7202-08-06-NWO-SS

  • Zoro # G705386390

product price:
$
35.29
/ea

Key Features

Fitting Side A Tube Outer Diameter
1/2 in
Pipe Size - Pipe Fitting
1/2 in x 3/8 in
Max. Pressure
75000 psi
Specific Fitting Shape
90 Degrees Elbow
Maximum Operating Pressure
2611 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
N7202-08-06-NWO-SS
Zoro #
G705386390
UPC #
-
Country of Origin
India
Max. Pressure
75000 psi
Specific Fitting Shape
90 Degrees Elbow
Item
Compression Fitting Elbow
Maximum Operating Pressure
2611 psi
Maximum Operating Temperature
400 Degrees F
Fitting Connection Type
Instrumentation x BSP
Standards
ASME B31.3-2002, ASTM A269-04, ASTM F1387
Fitting Material
Stainless Steel
Tube Fitting Material
Stainless Steel
Compliance
ASME Specifications, ASTM Specifications
Special Features
All Components are Made of the Same Material for Thermal Compatibility and Corrosion Resistance, Resist Temperature Cycling, Resist Vibration, Self-Aligning, Work on Thick and Thin Wall Tubing
Fitting Side A Connection Type
Compression
Fitting Side B Connection Type
MBSPP
Application
Hydraulics
Temp. Range
-20 Degrees to 100 Degrees F
Fitting Shape
90 Degrees Elbow
Compatible Fitting Brands
Parker A-LOK, Swagelok
Series
Brennan Instrumentation
Fitting Side 1 Connection Type
Compression
For Media Type
Gases
Operating Pressure - Maximum
2,611 psi
Fitting Side 2 Connection Type
MBSPP
Operating Temperature - Maximum
400 Degrees F
System of Measurement
Imperial/Metric
Precleaned Type
Cleaned and Bagged
Connector Type
Adapter, Reducer
Ferrule Type
Double Ferrule

Description

Compression Fitting Elbow, Application Hydraulics, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MBSPP, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 1/2 in, Maximum Operating Pressure 2611 psi, Maximum Operating Temperature 400 Degrees F, Overall Length 1 13/32 in, Specific Fitting Shape 90 Degrees Elbow, Fitting Side B Pipe Size 1/4 in, Compatible Fitting Brands Parker A-LOK, Swagelok, Thread Size A 3/4-16, Series Brennan Instrumentation
