Shop BRENNAN INDUSTRIES

Straight, SS, Metric 20 mm, Metric 25 mm

  • Mfr # D6565-S20-S20-SS

  • Zoro # G210190161

product price:
$
139.99
/ea
Free Shipping & Returns

Key Features

Specific Fitting Shape
Straight
Hex Size
36 mm
Standards
ABS (American Bureau of Shipping), BV (Bureau Veritas), DIN 3865, DNV GL, ISO 8434-1, Lloyd's Register, RINA (Registro Italiano Navale)
Thread Size B
M30 x 2
Minimum Operating Temperature
-425 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D6565-S20-S20-SS
Zoro #
G210190161
UPC #
-
Country of Origin
Germany

Dimensions

Hex Size
36 mm
Thread Size B
M30 x 2
Fitting Side B Pipe Size
20 mm
Fitting Side A Tube Outer Diameter
20 mm
Overall Length
60 mm
Thread Size A
M30 x 2
Fitting Side B Tube Outer Diameter
20 mm
Fitting Side A Pipe Size
20 mm
Fitting Side 2 Tube Outer Diameter
20 mm
Thread Size 1
M30 x 2
Thread Size 2
M30 x 2
Fitting Side 1 Tube Outer Diameter
20 mm
Wire Rope Length
60 mm

Details

Item

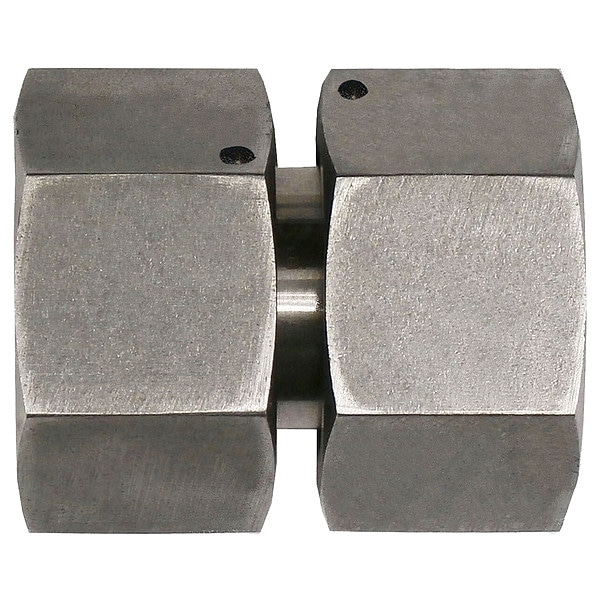

Compression Fitting Adapter
Specific Fitting Shape
Straight
Standards
ABS (American Bureau of Shipping), BV (Bureau Veritas), DIN 3865, DNV GL, ISO 8434-1, Lloyd's Register, RINA (Registro Italiano Navale)
Minimum Operating Temperature
-425 Degrees F
Fitting Material
Stainless Steel
Resistance Properties
Corrosion-Resistant, Temperature-Resistant
Compatible Fitting Brands
Parker (EO/EO2)
Maximum Operating Pressure
6090 psi
System of Measurement
Metric
Fitting Side B Connection Type
Female Metric Swivel
Fitting Side A Connection Type
Female Metric Swivel
Material Grade
316
Maximum Operating Temperature
1,200 Degrees F
Series
Volz
Application
Hydraulics
Fitting Features
Swivel
Fitting Shape
Straight
Operating Pressure - Maximum
6,090 psi
Fitting Side 1 Connection Type
Metric
Operating Temperature - Minimum
-425 Degrees F
For Media Type
Acids, Gases, Lubricants
Operating Temperature - Maximum
1,200 Degrees F
Fitting Side 2 Connection Type
Metric

Description

Compression Fitting Adapter, Application Hydraulics, Fitting Side A Connection Type Female Metric Swivel, Fitting Side B Connection Type Female Metric Swivel, Finish/Coating Not Applicable, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 20 mm, Fitting Side B Tube Outer Diameter 20 mm, Material Grade 316, Maximum Operating Pressure 6090 psi, Maximum Operating Temperature 1,200 Degrees F, Overall Length 60 mm, Specific Fitting Shape Straight, Fitting Side A Pipe Size 20 mm
